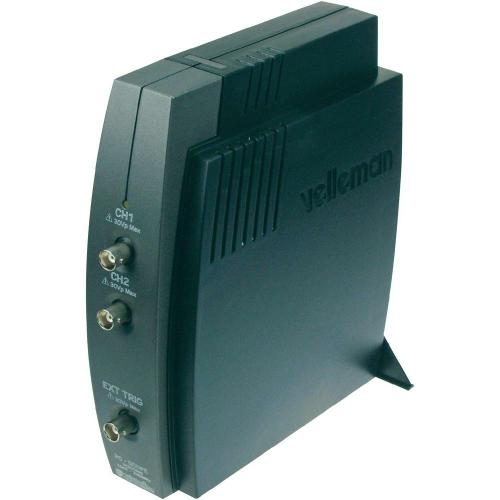

PCSU1000

PC scope module Velleman PCSU1000 60MHz 2Channel 50 null 4 null 8Bit Digital storage DSO, Spectrum analyzer

* Time base: 20ns to 100ms per division

.

Trigger source CH1, CH2, EXT or free run, edge rising or falling, level full-screen adjustable

.

Markers for voltage, time/frequency and amplitude

.

Input range: 5mV to 2V/division 0.15mV display resolution input sensitivity

.

Auto set-up function, pre-trigger function and X10 option

.

Measures True RMS, dBV, dBm, p to p, Duty cycle, Frequency...

.

4K samples / channel record length

.

1.25kHz to 50MHz real time sampling frequency 1GHz sampling frequency for Repetitive signals

.

1.2kHz to 25MHz frequency range

.

Linear or logarithmic timescale

.

Zoom function

.

Timescale: 20ms/Div to 2000s/Div

.

9.4hour/screen max. record time

.

Automatic storage of data and recording for more than 1 year

.

Sampling rates from 100samples/s to 1sample every 20s

.

Record and display of screens

.

Inputs: 2 channels, 1 external trigger input

.

Input impedance : 1 Mohm / 30pF

.

Maximum input voltage : 30V AC + DC

.

Input coupling : DC, AC and GND
