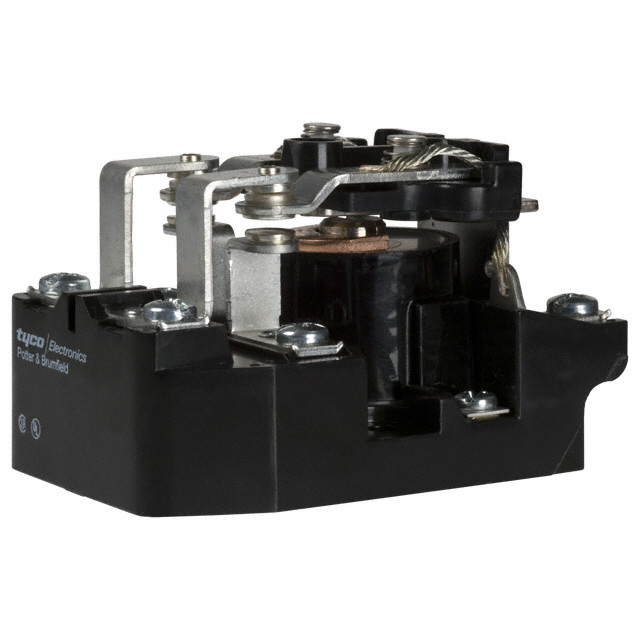

Power Relay 24VAC 30A DPDT 85.73mm 63.8mm 63.5mm
General Purpose Relay DPDT 2 Form C 24VAC Coil Chassis Mount
得捷:
RELAY GEN PURPOSE DPDT 30A 24V
艾睿:
Power Relay 24VAC 30A DPDT85.73x63.8x63.5mm
Allied Electronics:
PRD-11AG0-24=PRD, 1-1393127-1
Chip1Stop:
Electromechanical Relay 24VAC 12Ohm 30A DPDT 85.73x63.8x63.5mm Power Relay
Verical:
Power Relay 24VAC 30A DPDT85.73x63.8x63.5mm Screw Mount
MASTER:
Power Relay 24VAC 30A DPDT 85.73mm 63.8mm 63.5mm
Electro Sonic:
Power Relay 24VAC 30A DPDT85.73x63.8x63.5mm
绝缘电阻 100 MΩ
触点类型 DPDT
功耗 9.8 VA
触点额定电流 30.0 A
线圈电压 24 VAC
线圈电流 410 mA
线圈电压AC 24 V
线圈电阻 12 Ω
载流 30.0 A
线圈功率 9.8 VA
开关电流Max 30 A
工作温度Max 45 ℃
工作温度Min -55 ℃
接触电阻Max 75 mΩ
安装方式 Screw
长度 85.7 mm
宽度 63.8 mm
高度 63.5 mm
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 45℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
