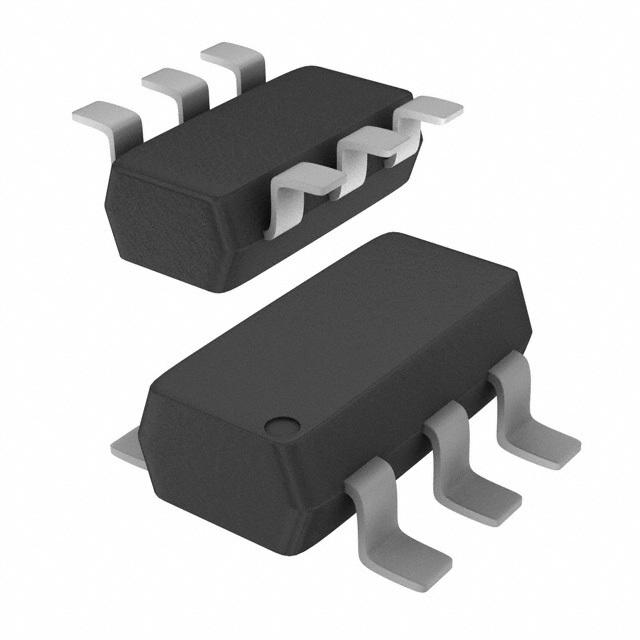

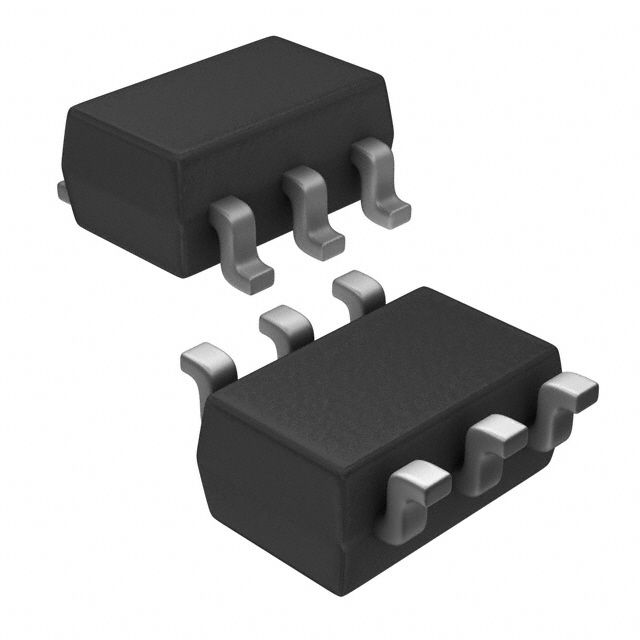

NXP PRTR5V0U4D,125. 静电保护装置, TVS, SOT-457, 6 引脚, 700 mV
The . is an ultra low capacitance quadruple rail-to-rail Electrostatic Discharge ESD Protection Device, designed to protect four high-speed data lines or high-frequency signal lines from the damage caused by ESD and other transients. It is integrates four ultra low capacitance rail-to-rail ESD protection channels and one additional ESD protection diode to ensure signal line protection even if no supply voltage is available.
- .
- 4 High-speed Data Lines or High-frequency Signal Lines
- .
- Very Low Clamping Voltage Due to an Integrated Additional ESD Protection Diode
- .
- Very Low Reverse Current
ESD sensitive device, take proper precaution while handling the device.
工作电压 700 mV
电容 40 pF
击穿电压 6 V
电路数 1
通道数 4
针脚数 6
测试电流 1 mA
最大反向击穿电压 9 V
最小反向击穿电压 6 V
击穿电压 6 V
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 6
封装 SOT-457
高度 1 mm
封装 SOT-457
工作温度 -55℃ ~ 150℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 多媒体, Multimedia, Computers & Computer Peripherals, Consumer Electronics, 消费电子产品, 计算机和计算机周边, 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
PRTR5V0U4D,125 NXP 恩智浦 | 当前型号 | 当前型号 |
PRTR5V0U4AD,125 恩智浦 | 类似代替 | PRTR5V0U4D,125和PRTR5V0U4AD,125的区别 |
SRV05-4.TCT Semtech Corporation | 功能相似 | PRTR5V0U4D,125和SRV05-4.TCT的区别 |
