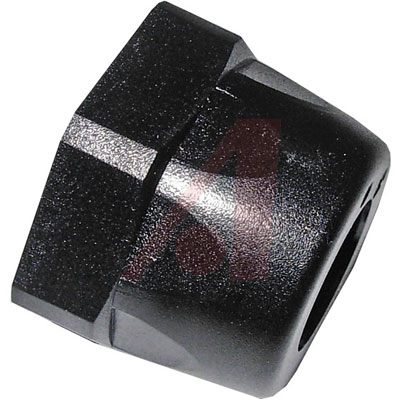

Heavy Duty Power Connectors 3P MPL SEALING GLAND WIRE RANGE 1.6-2.6mm
3 Position Mini PL SPEC Pak® is a rugged and environmentally sealed IP68 connector with a manually operated release latch. The 3 Position Mini PL leverages PowerMod® pin and socket contact technology, delivering capabilities up to 22 amps at 600 volts while handling wires from 24 to 12 AWG 0.5 to 2.5 mm2. The 30μ gold plated pins are available in 3 lengths, enabling sequenced contact mating options. These contacts sit inside a UV and flame resistant shells that are touch safe on both sides.
**Features**
Manual Release Latch
* _Prevents accidental un-mating_
Pin & Socket Contact Technology
* _Gold plated for greater conductivity_
3 Pin Lengths Available
* _Offers sequencing capabilities_
Touch Safe per UL 1977 Sec. 10.2
* _Touch safe on both pin & socket sides_
Rugged & Environmentally Sealed Shells
* _F1 weatherability rating per UL 746C_
* _V0 flammability rating per UL 94_
* _IP68, exceeds industry standards_
