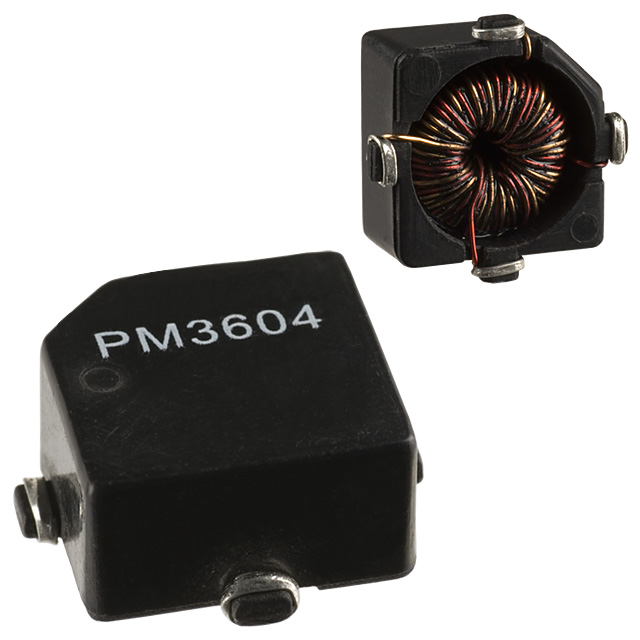

PM3604-68-RC

SMD电感/变压器 SMD Inductor/Transformer

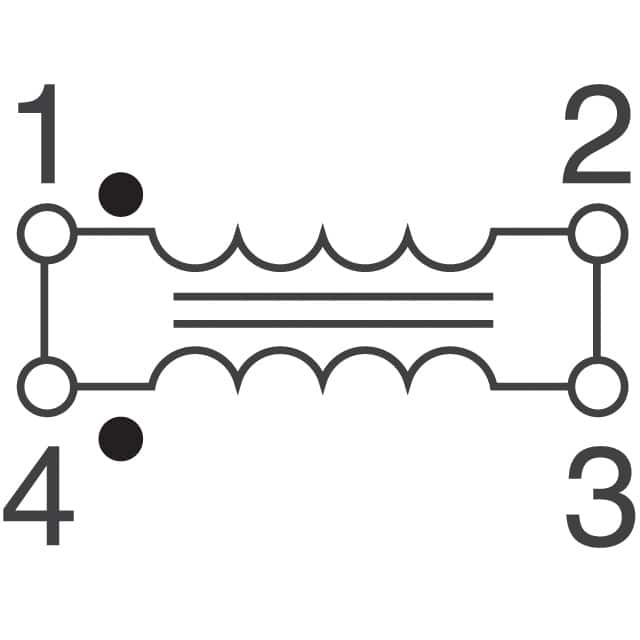

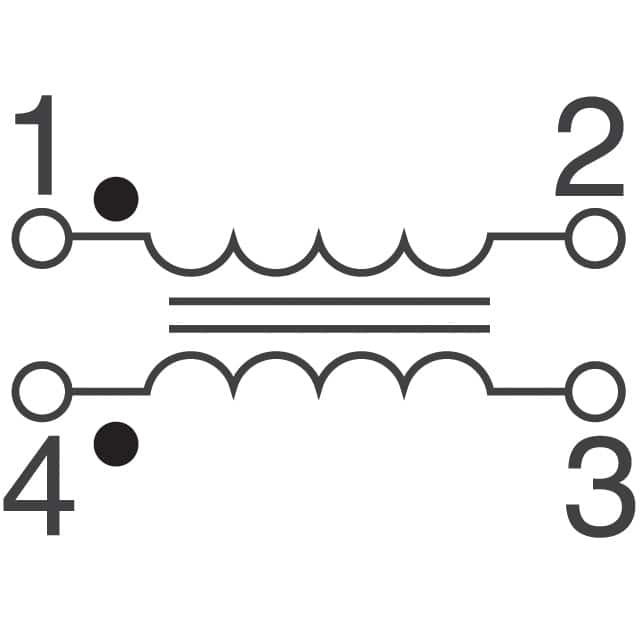

无屏蔽 线圈器阵列 电感 - 串联连接 电感 - 并联连接 140 毫欧最大 直流电阻 DCR - 并联 非标准

得捷:
INDUCT ARRAY 2 COIL 68UH SMD

艾睿:
This power PM3604-68-RC surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 20%. This device utilizes wirewound technology. It has an inductance of 68u|272u H. This SMD inductor has a maximum DC current of 1.19|0.6 A with a maximum resistance of 140m|560m Ohm. This product is 13.97 mm long, 6.73 mm tall and 13.97 mm deep.

Chip1Stop:
Ind Power Wirewound 68uH/272uH 20% Iron 1.19A/0.6A T/R

Verical:
Inductor Power Wirewound 68uH/272uH 20% Iron 1.19A/0.6A 0.14Ohm/0.56Ohm DCR T/R

Newark:
# BOURNS JW MILLER  PM3604-68-RC  Inductor, Power, 68 µH, 20%, 0.14 ohm, 1.19 A, 13.97mm x 11.48mm x 6.73mm

Electro Sonic:
Inductor Power Wirewound 68uH/272uH 20% Iron 1.19A/0.6A 140mOhm/560mOhm DCR T/R
