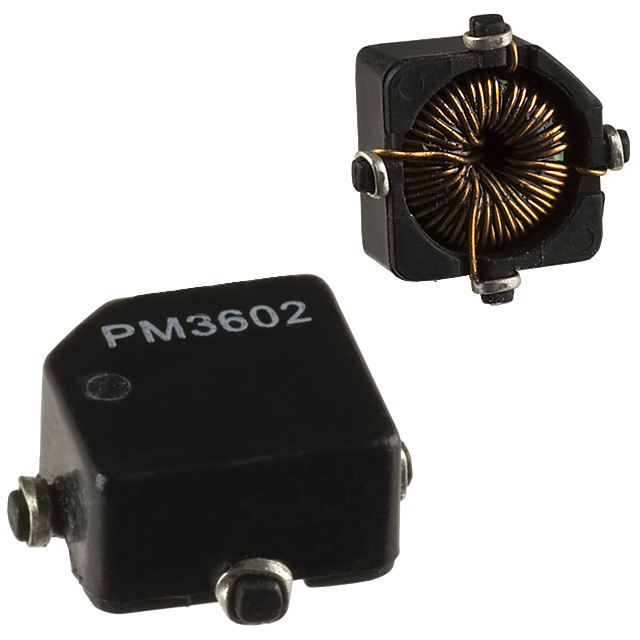

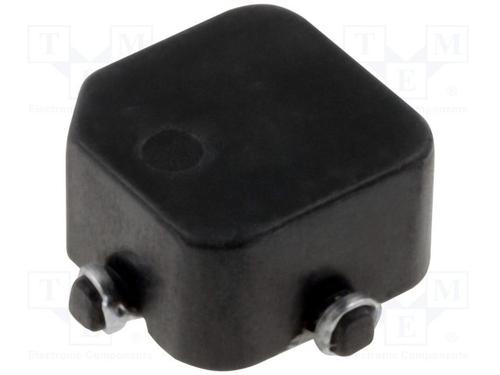

PM3602-15-RC

SMD电感/变压器 SMD Inductor/Transformer

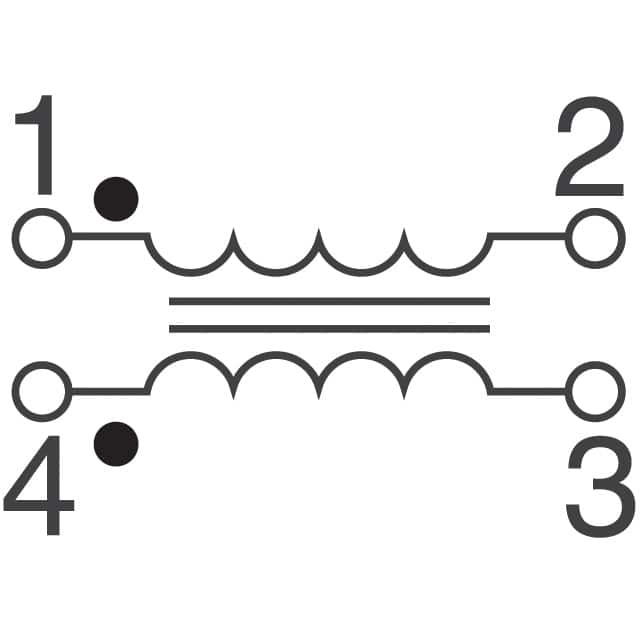

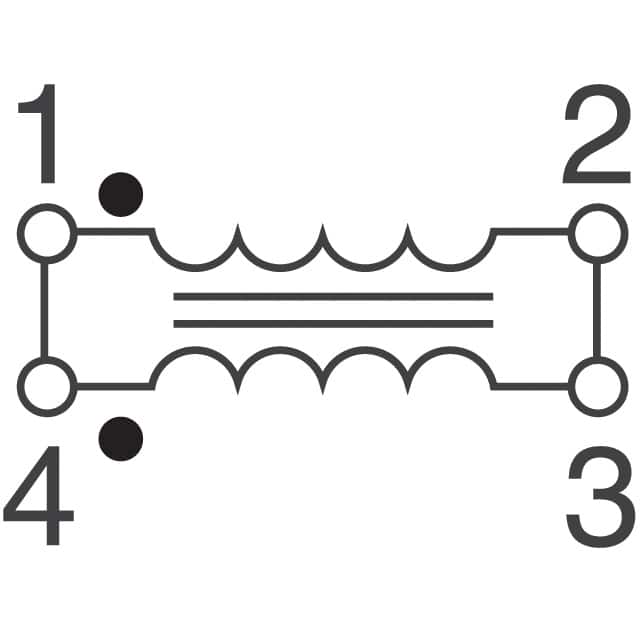

无屏蔽 线圈器阵列 电感 - 串联连接 电感 - 并联连接 63 毫欧最大 直流电阻 DCR - 并联 非标准

得捷:
INDUCT ARRAY 2 COIL 15UH SMD

贸泽:
Coupled Inductors 15uH 20%

艾睿:
This power PM3602-15-RC surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 1.45|0.73 A with a maximum resistance of 63m|250m Ohm. It has a tolerance of 20%. It has an inductance of 15u|60u H. This product is 11.48 mm long, 5.72 mm tall and 11.48 mm deep. This device utilizes wirewound technology.

安富利:
Ind Power Wirewound 15uH/60uH 20% Iron 1.45A/0.73A T/R

TME:
Inductor: wire; SMD; 11.5x9x5.72mm; ±20%; -55÷125°C; No.of wind:2

Verical:
Inductor Power Wirewound 15uH/60uH 20% Iron 1.45A/0.73A 0.063Ohm/0.25Ohm DCR T/R

Newark:
# BOURNS JW MILLER  PM3602-15-RC  Inductor, Power, 15 µH, 20%, 0.063 ohm, 1.45 A, 11.48mm x 8.99mm x 5.72mm

MASTER:
Inductor Power Wirewound 15uH/60uH 20% Iron 1.45A/0.73A 63mOhm/250mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 15uH/60uH 20% Iron 1.45A/0.73A 63mOhm/250mOhm DCR T/R
