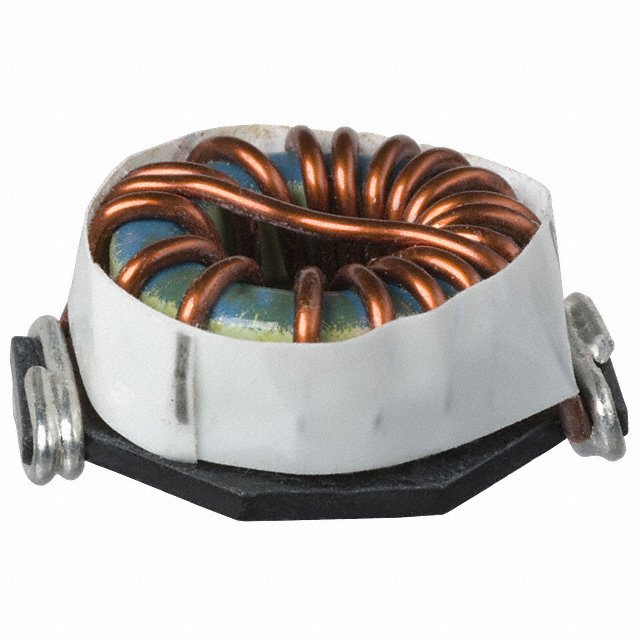

PM2110-271K-RC

大电流SMD功率电感 High Current SMD Power Inductors

270 µH 无屏蔽 环形 器 3.4 A 82 毫欧最大 非标准

得捷:
FIXED IND 270UH 3.4A 82 MOHM SMD

立创商城:
270uH ±10% 3.4A 82mΩ

贸泽:
固定电感器 270uH 10%

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power PM2110-271K-RC surface mount inductor from Bourns is perfect for you! This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. This SMD inductor has a maximum DC current of 3.4 A with a maximum resistance of 82m Ohm. Its test frequency is 1K Hz. This device is made with wirewound technology. It has an inductance of 270u H. It has a tolerance of 10%. This product is 31 mm long, 15.24 mm tall and 25.4 mm deep.

安富利:
Ind High Current Wirewound 270uH 10% 1KHz Iron 3.4A Box

Chip1Stop:
Inductor Power Wirewound 270uH 10% 1KHz Iron 3.4A 82mOhm DCR Box

Verical:
Inductor Power Toroid 270uH 10% 1KHz Iron 3.4A 0.082Ohm DCR Box

Newark:
# BOURNS JW MILLER  PM2110-271K-RC  Inductor, Power, PM2110 Series, 270 µH, 3.4 A, 0.082 ohm, ± 10%, 30.5mm x 25.4mm x 15.24mm

Electro Sonic:
Inductor Power Wirewound 270uH 10% 1KHz Iron 3.4A 82mOhm DCR Box
