MICROCHIP PIC16F1829-E/ML 微控制器, 8位, 闪存, AEC-Q100, PIC16F18xx, 32 MHz, 14 KB, 1 KB, 20 引脚, QFN
The is an enhanced mid-range PIC16 family 8-bit powerful 200 nanosecond instruction execution yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®RISC architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 14kB of addressable program memory size, 1024bytes of data memory size, 18 general-purpose I/O pins, two comparators, 12-channel 10-bit analog-to-digital A/D converter and one 5-bit digital-to-analog D/A converter. This device operates at a maximum frequency of 32MHz with wide operating voltage of 1.8 to 5.5V.
频率 32 MHz
电源电压DC 1.80V min
针脚数 20
时钟频率 32.0 MHz
RAM大小 1 KB
位数 8
耗散功率 800 mW
FLASH内存容量 14 KB
模数转换数ADC 1
输入/输出数 18 Input
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 800 mW
电源电压Max 5.5 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 20

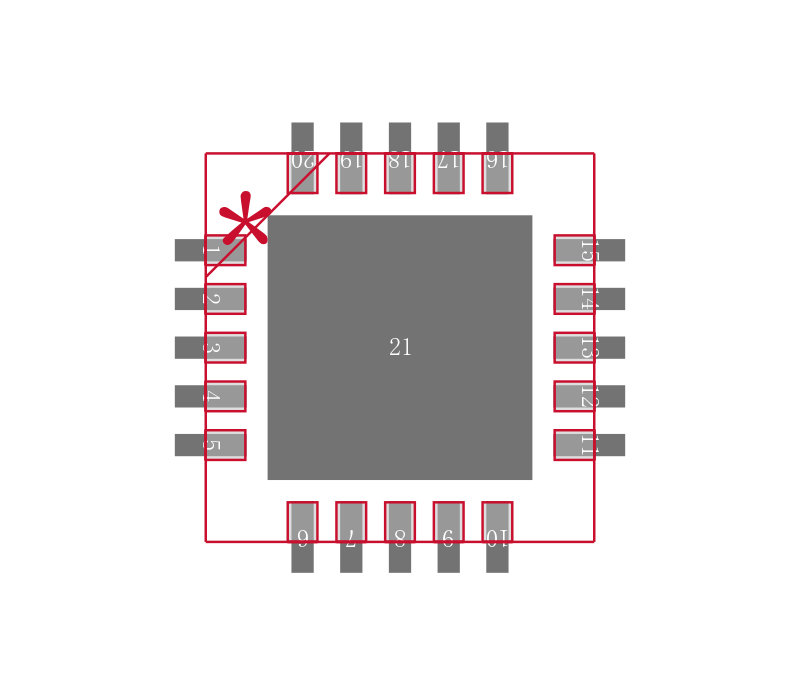

封装 QFN-20
长度 4 mm
宽度 4 mm
高度 0.88 mm
封装 QFN-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 Medical, 电机驱动与控制, 照明, 医用, Motor Drive & Control, 工业, 消费电子产品, Automotive, Lighting, 安全, Consumer Electronics, Security, 车用, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
HTS代码 8542310001
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PIC16F1829-E/ML Microchip 微芯 | 当前型号 | 当前型号 |
PIC16F1828-I/ML 微芯 | 类似代替 | PIC16F1829-E/ML和PIC16F1828-I/ML的区别 |
