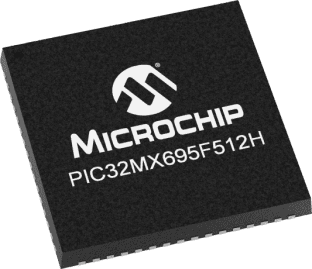

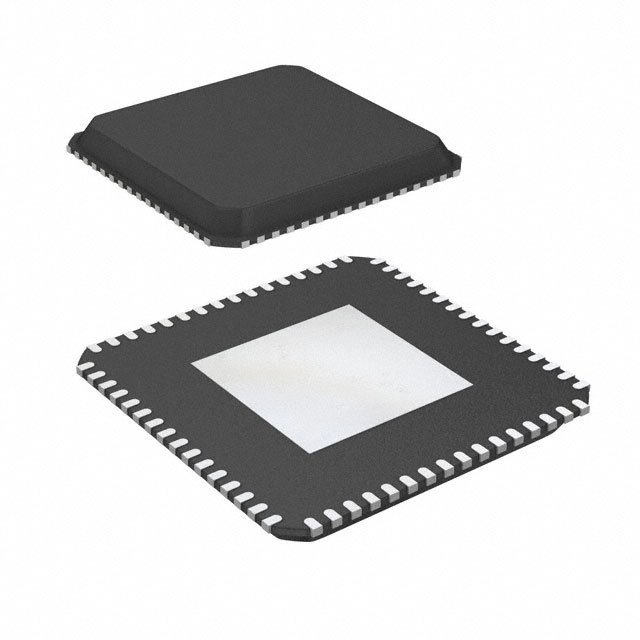

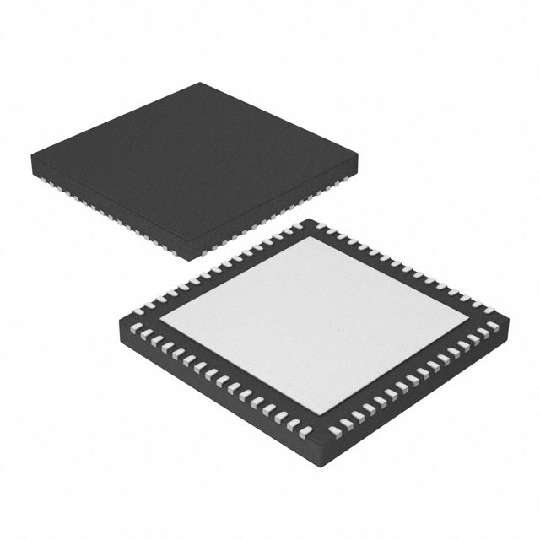

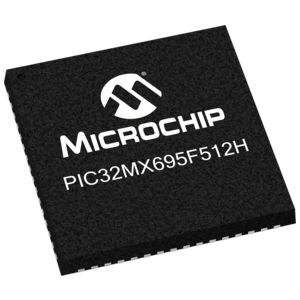

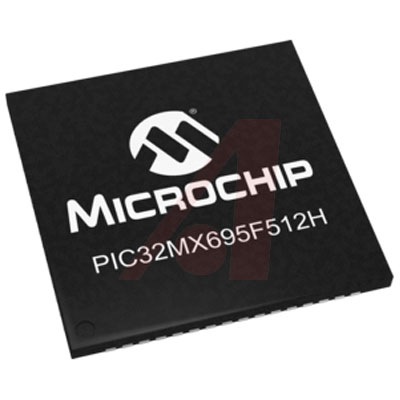

MICROCHIP PIC32MX695F512H-80I/MR 芯片, 32位微控制器, 512K闪存, USB, 64QFN
The is a high performance PIC32MX family 32-bit Microcontroller packs powerful PIC®RISC architecture with MIPS M4K core. This product offer all of the advantages of the well recognized high-performance x32 architecture with standardized features including 512kB of addressable program memory size, 12kB of Auxiliary flash, 131072bytes of data memory size, two comparators and 16-channel 10-bit analog-to-digital A/D converter. This device operates at a maximum frequency of 80MHz with wide operating voltage of 2.3 to 3.6V.
- .
- 5 Stage pipeline
- .
- 105DMIPS MIPS M4K Core
- .
- 8-Channel DMA
- .
- full-speed USB 2.0 Device/Host/OTG
- .
- Five 16-bit timers
- .
- Two 32-bit timers
- .
- 5x Capture/Compare/PWM CCP
- .
- 10/100 Base-TX Ethernet Mac
- .
- Instruction trace
频率 80 MHz
电源电压DC 2.30V min
工作电压 2.3V ~ 3.6V
针脚数 64
时钟频率 80.0 MHz
RAM大小 128 KB
位数 32
FLASH内存容量 512 KB
UART数量 6
模数转换数ADC 1
输入/输出数 53 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 64

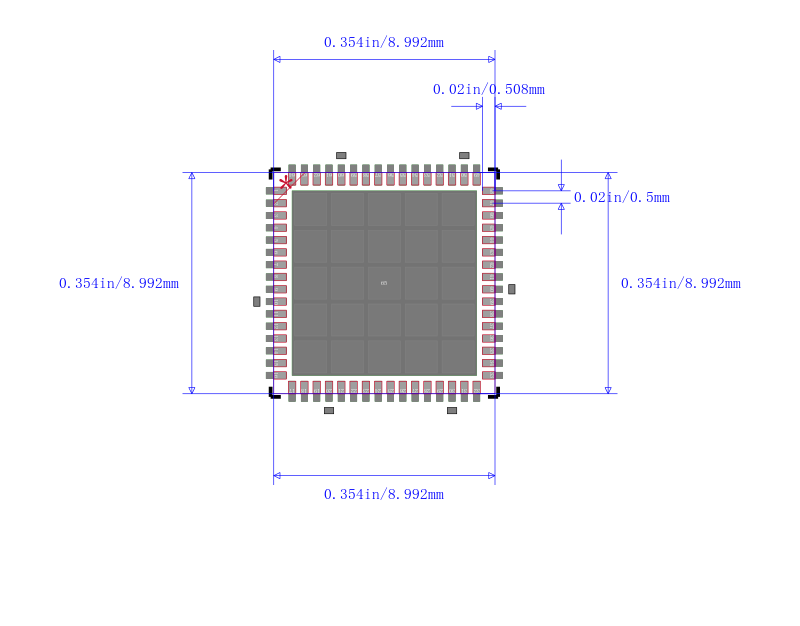

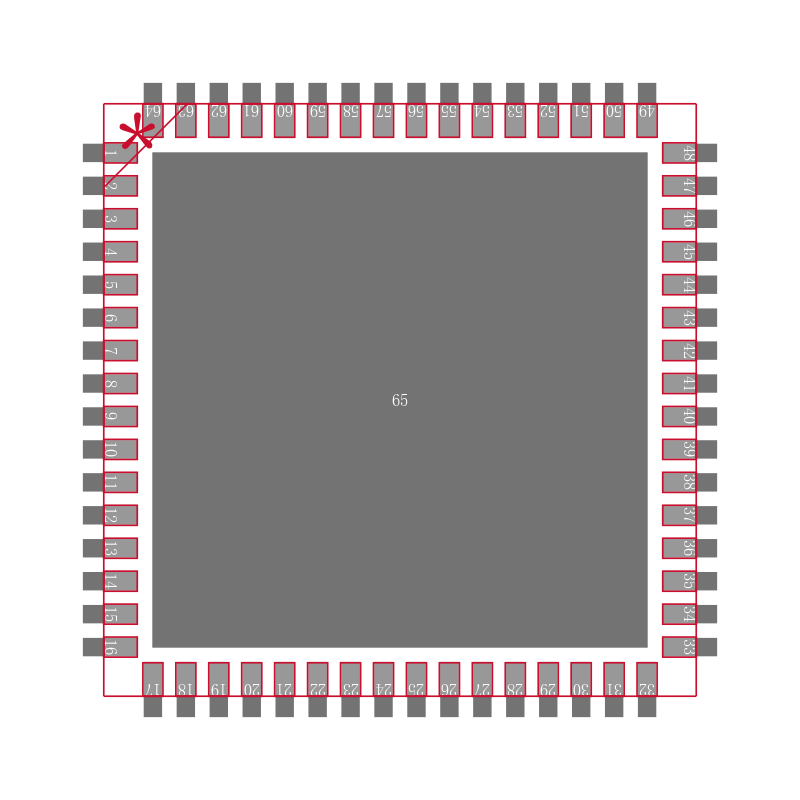

封装 QFN-64
长度 9 mm
封装 QFN-64
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 嵌入式设计与开发, Audio, Communications & Networking, Multimedia, Embedded Design & Development, 通信与网络, 多媒体, 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 3A991.a.2
HTS代码 8542310001
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
PIC32MX695F512H-80I/MR Microchip 微芯 | 当前型号 | 当前型号 |
PIC32MX695F512HT-80I/MR 微芯 | 类似代替 | PIC32MX695F512H-80I/MR和PIC32MX695F512HT-80I/MR的区别 |
