PJRAS1X1S01X

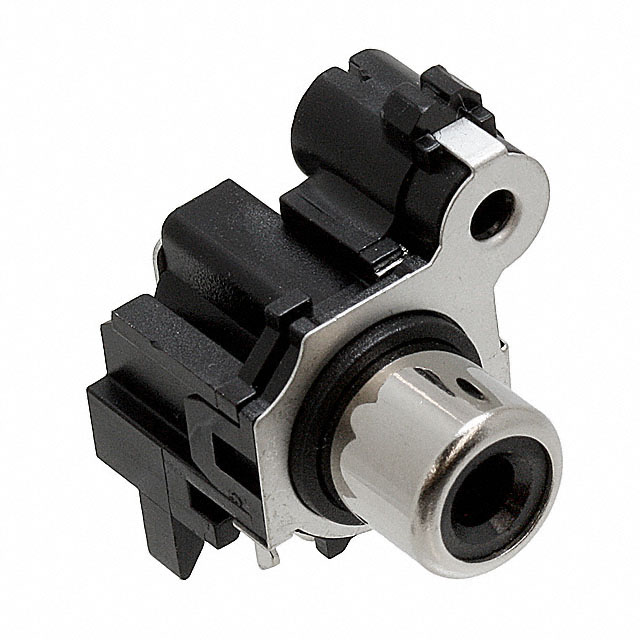

SWITCHCRAFT PJRAS1X1S01X RCA Phono Audio / Video Connector, 1Contacts, Jack, Tin Plated Contacts, Metal Body, Black

3.20mm 内径，9.00mm 外径（RCA） 音频（RCA）插孔 单声道 焊接

得捷:
CONN RCA JACK MONO 3.2MM R/A

艾睿:
The best way to use video and audio in your project is by using the phono jack PJRAS1X1S01X audio and video connector from Switchcraft. It has a maximum voltage rating of 34 VDC|34VAC. It has a female type gender. It has a right angle body orientation. This connector has a single port. PJRAS1X1S01X is housed in acrylonitrile butadiene styrene. This device has a maximum current rating of 2 A. It uses the solder termination method. This part has an operating temperature range of -25 °C to 80 °C. This product is 21.2 mm long, 18.5 mm tall and 14.95 mm deep.

Verical:
Conn Phono Jack F Solder RA Thru-Hole 1 Port

Newark:
# SWITCHCRAFT  PJRAS1X1S01X  RCA Phono Audio / Video Connector, 1 Contacts, Jack, Tin Plated Contacts, Metal Body, Black

Electro Sonic:
RCA Phono Audio / Video Connector - 1 Position - 2 Contacts - Jack - Tin Plated Contacts - Metal ...
