PIC16 系列 72 B RAM 1 kB 闪存 8 位 闪存 微控制器 - QFN-14
PIC series IC 8 位 20MHz 1.5KB(1K x 12) 闪存 16-QFN(3x3)
立创商城:
PIC 20MHz 闪存:1K@x12bit
得捷:
IC MCU 8BIT 1.5KB FLASH 16QFN
艾睿:
With the PIC16F505-I/MG microcontroller by Microchip Technology, many functions and tasks can be automated to a developer&s;s desired specifications. This microcontroller has an operating temperature range of -40 °C to 85 °C. It has a maximum clock speed of 20 MHz. This device is based on the PIC core architecture. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V. Its flash program memory is 1.5KB. This is a 8 bit processor.
Allied Electronics:
1.5 KB Flash, 72 RAM, 12 I/O16 QFN 3x3x0.9mm TUBE
Verical:
MCU 8-bit PIC16 PIC RISC 1.5KB Flash 2.5V/3.3V/5V Automotive 16-Pin QFN EP Tube
Newark:
# MICROCHIP PIC16F505-I/MG 8 Bit Microcontroller, Flash, PIC16F5xx, 20 MHz, 1.5 KB, 72 Byte, 16 Pins, QFN
Online Components:
MCU 8-bit PIC16 PIC RISC 1.5KB Flash 2.5V/3.3V/5V Automotive 16-Pin QFN EP Tube
DeviceMart:
MCU PIC 1.5K FLASH 3X3 16QFN
频率 20 MHz
电源电压DC 2.00V min
时钟频率 20.0 MHz
RAM大小 72 B
位数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 800 mW
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16

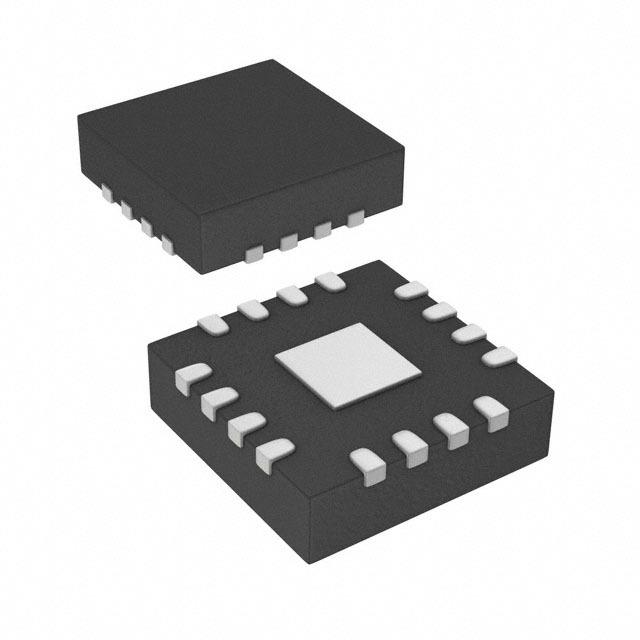

封装 QFN-16
封装 QFN-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
HTS代码 8542310001
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PIC16F505-I/MG Microchip 微芯 | 当前型号 | 当前型号 |
PIC16F505T-I/MG 微芯 | 完全替代 | PIC16F505-I/MG和PIC16F505T-I/MG的区别 |
