PDB241-GTR01-504C2

Res Carbon Film POT 500KΩ 20% 0.25W1/4W 1Elec/1MechTurns 6mm 30.5 X 24 X 28mm Solder Lug Panel Mount

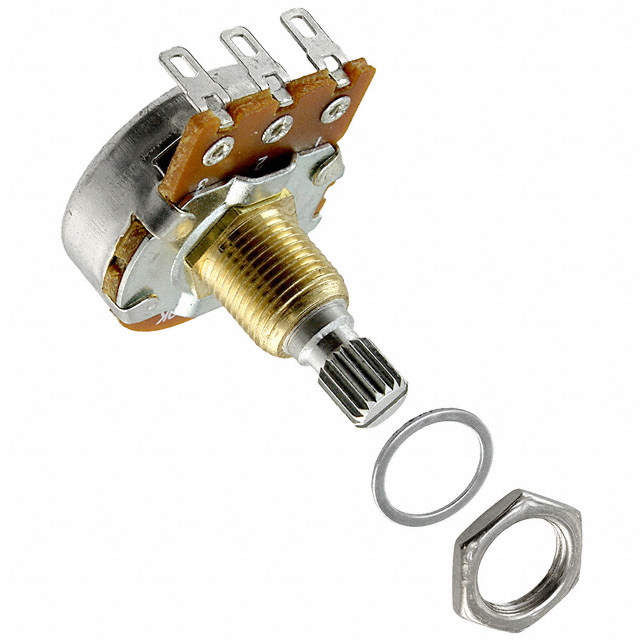

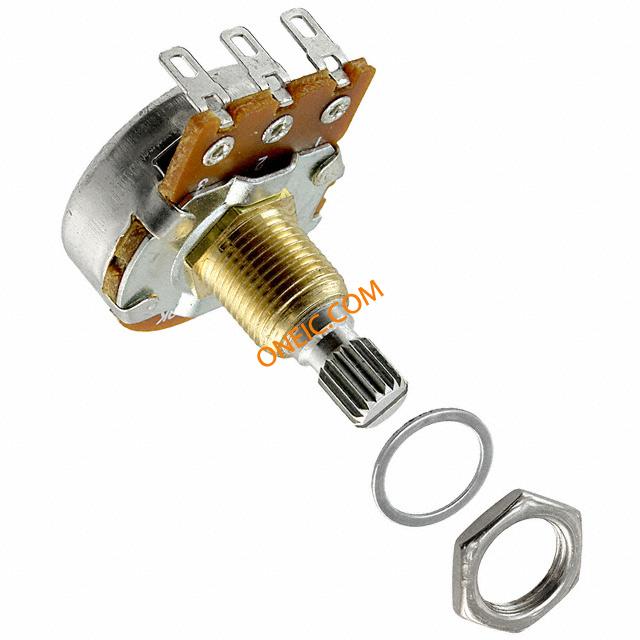

Series PDB241-GTR is a low-torque 24 mm guitar potentiometer with metal shaft and bushing, carbon element, rear solder lugs, and choice of plain or knurled shaft. Other resistance values, long shafts and linear taper options available — contact your local Allied representative.

.

* Tolerance:** ±20%.** Operating Temperature:** –10°C to +70°C.** Power Rating:** 0.25 Watts. **Maximum Operating Voltage:** 250 V. **Rotational Noise:** 150 mV Max.** Mechanical Angle:** 300° ±5°. **Torque:** 10 to 45 g-cm.** Rotational Life:** 15K cycles min.** Hardware: **2 flat washers and 2 mounting nuts supplied per potentiometer.
