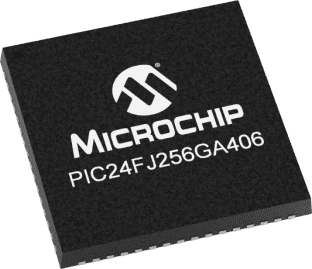

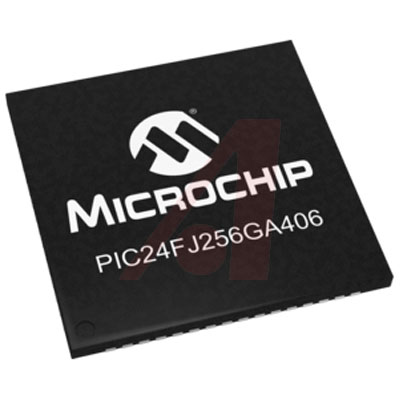

MICROCHIP PIC24FJ256GA406-I/MR 微控制器, 16位, 通用, PIC24FJ, 32 MHz, 256 KB, 16 KB, 64 引脚, QFN
The is a high-performance PIC24F family eXtreme low power technology 16-bit Microcontroller packs powerful PIC®RISC architecture with up to 16 MIPS of performance at 3.3V with Intermediate code-guard security. This product offer all of the advantages of the well recognized high-performance x16 architecture with standardized features including 256kB of addressable program memory size, 16384bytes of data memory size, 53 general-purpose I/O pins, 16-channel 10/12-bit analog-to-digital A/D converter and one 10-bit digital-to-analog D/A converter. This device operates at a maximum frequency of 32MHz with wide operating voltage of 2 to 3.6V.
频率 32 MHz
针脚数 64
时钟频率 32.0 MHz
RAM大小 16 KB
位数 16
模数转换数ADC 1
输入/输出数 53 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
数模转换数DAC 1
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 64

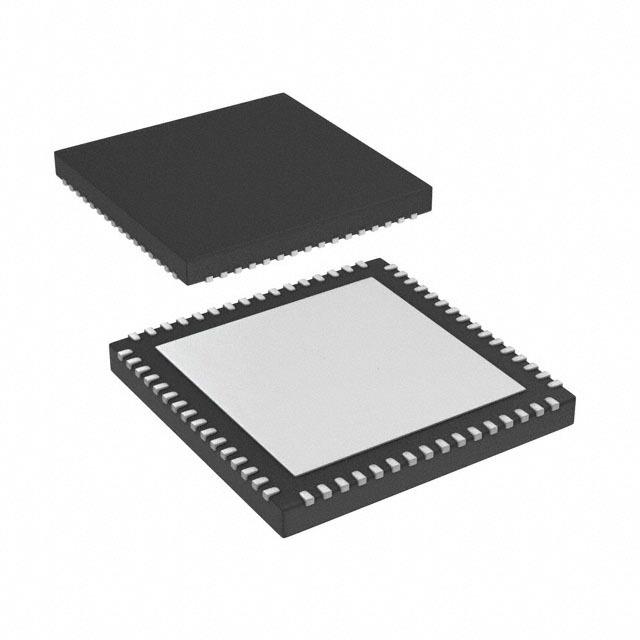

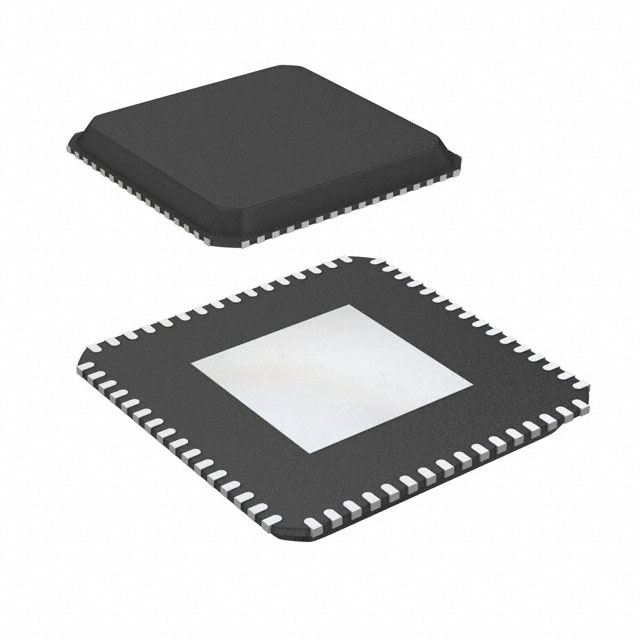

封装 QFN-64
封装 QFN-64
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tube
制造应用 消费电子产品, 医用, 通信与网络, Communications & Networking, Lighting, 安全, Motor Drive & Control, 车用, 电机驱动与控制, Consumer Electronics, Automotive, Consumer Electronics, , Audio, Automotive, 多媒体, Multimedia, Medical, Security, 照明
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 5A992
HTS代码 8542310001
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PIC24FJ256GA406-I/MR Microchip 微芯 | 当前型号 | 当前型号 |
PIC24FJ256GA406T-I/MR 微芯 | 类似代替 | PIC24FJ256GA406-I/MR和PIC24FJ256GA406T-I/MR的区别 |
