PB-503LAB

Proto-Board Workstation W/ Courseware

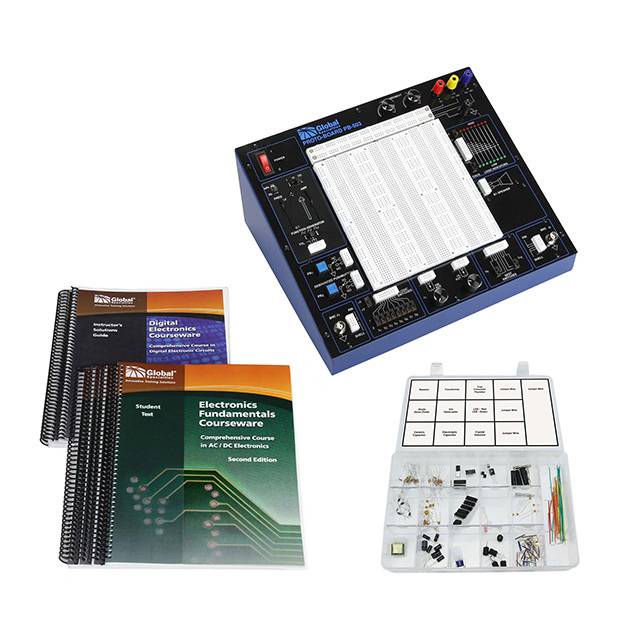

The PB-503 Lab is a comprehensive course in Analog and Digital Electronics which utilizes the PB-503 Circuit Design Workstation as a base for its experiments. Students will learn fundamentals of electricity all the way through combinational logic circuits and microcomputer concepts. Student will also learn by utilizing valuable hands-on breadboarding and experiment verification with the use of the PB-503 trainer. The program/lab comes complete with the PB-503 trainer, courseware and instructor guides.

.

*

Features

* **3-year warranty on all parts and workmanship**

* **Ideal for analog, digital and microprocessor circuits **

* **New high & low buffered logic indicators **

* **8 channel logic monitor **

* **New 8 selectable logic switches **

* **Function Generator with continuously variable sine, square and triangle waveforms and TTL pulses **

* **Triple output power supply offers fixed 5 VDC supply plus two variable outputs: ±1.3 to ±15 VDC **

* **Two Digital Pulsers **

* **Audio experimentation speaker **

* **Removable breadboard plate with additional plates available **

* **Multiple features in one complete test instrument saves hundreds of dollars necessary for individual units
