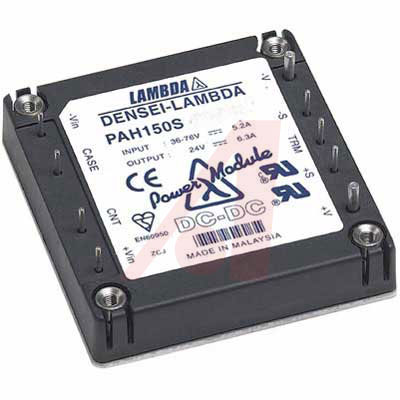

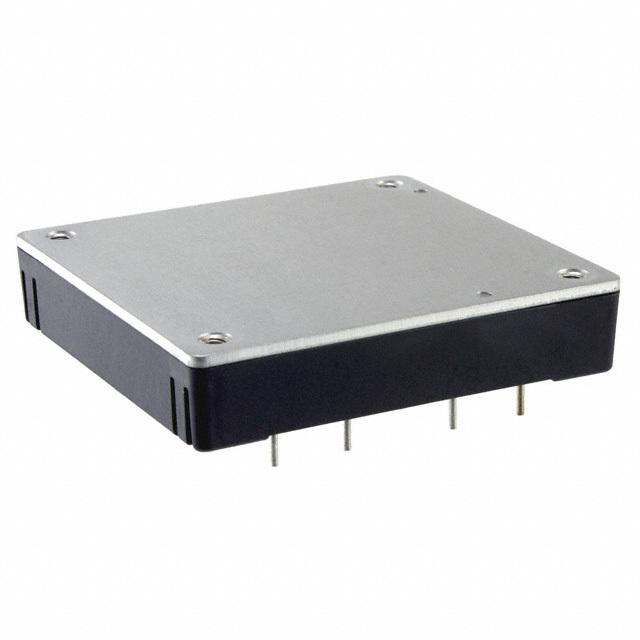

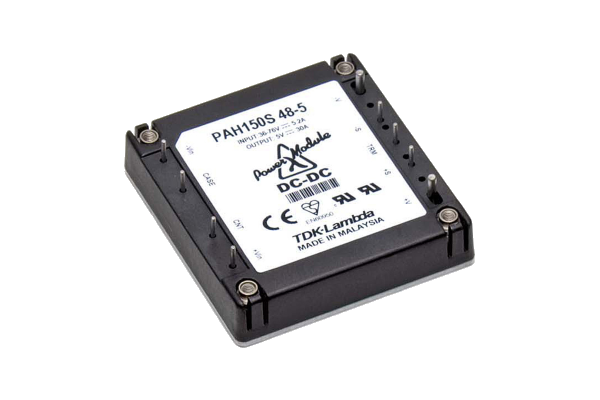

Module DC-DC 48Vin 1Out 12V 12.5A 150W 9Pin Half-Brick
PAH Series, 1500 VAC Isolation Voltage, 48V Input Half brick DC-DC Converters
* Wide adjustment range
* Zero pre-load
* ASIC design
* No potting materials
* Low Voltage Outputs
* Industry Standard Size
* Wide Adjustment Range
* Wide Range Operating Temperature
* Up to 70 A Output Current
* Various Options Available
得捷:
DC DC CONVERTER 12V 150W
艾睿:
Module DC-DC 48VIN 1-OUT 12V 12.5A 150W 9-Pin Half-Brick
Allied Electronics:
PwrSup; DC-DC Converter; Out 12VDC; In 36 to 76VDC; PCB; Encapsulated; Commercial; 150W
Chip1Stop:
Module DC-DC 48VIN 1-OUT 12V 12.5A 150W 9-Pin Half-Brick
电源电压DC 48.0 V
额定功率 150 W
输出接口数 1
输入电压DC 36V ~ 76V
输出电压 12 V
输出电流 12.5 A
输出功率 150 W
隔离电压 1.5 kV
输入电压Max 76 V
输入电压Min 36 V
输入电压DC Max 76 V
输入电压DC Min 36 v
输出电流Max 12.5 A
输出功率Max 150 W
工作温度Max 100 ℃
工作温度Min 40 ℃
输入电压 48 VDC
安装方式 Through Hole
封装 Half-Brick
长度 57.9 mm
宽度 57.9 mm
高度 12.7 mm
封装 Half-Brick
工作温度 -40℃ ~ 100℃
产品生命周期 Active
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
