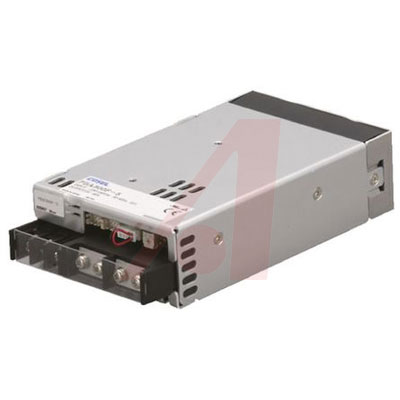

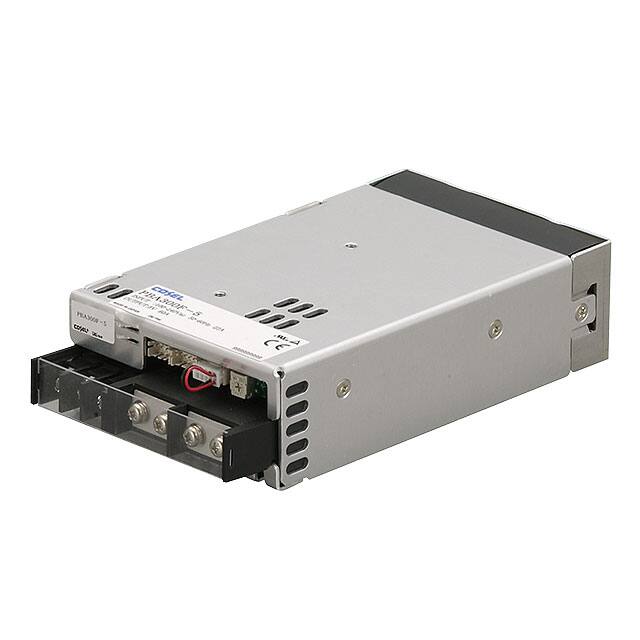

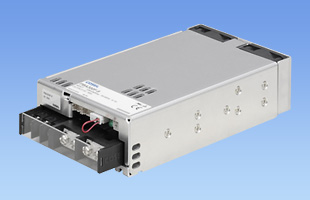

AC-DC Power Supply Single-OUT 7.5V 40A 300W
The PBA Series offers 40 different models with eight wattage ranges to chose from. Remote on/off option allows you to control the power supply without physically being there. Cover options are available.
Universal Input—85-264 VAC, 120-370 VDC
Power Factor Correction Complies with EN61000-3-2 Directive
83 ppm Documented Field Failure Rate
Over-Current Protection
Over-Voltage Protection
Remote Sensing
Remote On/Off on 300 W and Above Units
Power Alarm
Ul, C-UL, TUV and CE Approvals
Five-Year Warranty
输出接口数 1
输出电压 7.5 V
输出电流 40 A
输出功率 300 W
隔离电压 3 kV
输入电压DC Max 350 V
输入电压DC Min 120 V
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电流Max 40 A
输入电流Min 4.1 A
工作温度Max 71 ℃
工作温度Min -20 ℃
输入电压 85VAC ~ 264VAC
长度 6.7 in
宽度 4.01 in
高度 42 mm
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
