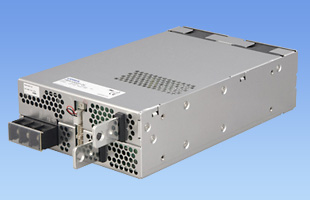

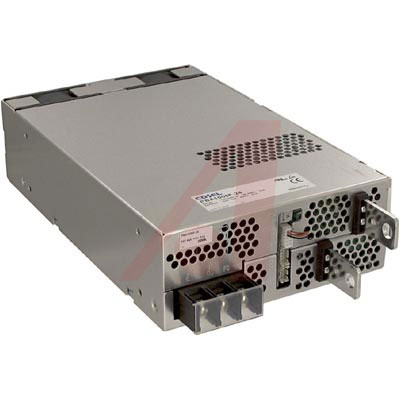

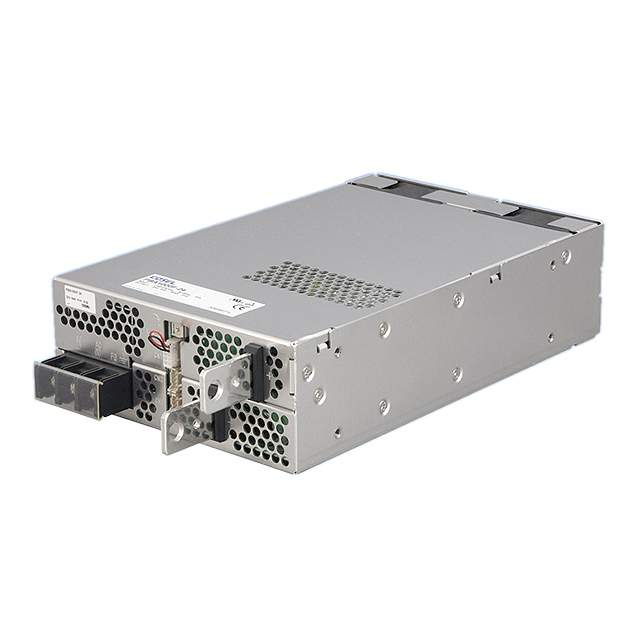

Power Supply; 24V; 44A @ 100V; 85 to 264; 150mV Max.; 96mV Max.
Switching Power Supplies
* 40 Models 24 Additional Models Available
* 5, 12, 15, 24 and 48 VDC Outputs 3.3, 9 and 36 VDC Outputs Available
* 8 Wattage Ranges
* Universal Input — 85-264 VAC, 120-370 VDC
* Power Factor Correction
* 83 ppm Documented Field Failure Rate
* High Power Density
* High Efficiency
* Proprietary Thermal Technology
* Remote Sensing
* Remote On/Off
* Power Alarm
* Wide Variety of Options Available
* UL, C-UL, TUV and CE Approvals
* Five-Year Warranty
* Covers Available
额定功率 1000 W
输出接口数 1
输出电压 24 V
输出电流 44 A
输出功率 1056 W
输入电压DC Max 350 V
输入电压DC Min 120 V
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电流Max 44 A
输入电流Min 13 A
工作温度Max 71 ℃
工作温度Min -20 ℃
输入电压 85VAC ~ 264VAC
长度 9.45 in
宽度 5.91 in
高度 2.4 in
工作温度 -20℃ ~ 71℃
产品生命周期 Active
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 PB free
