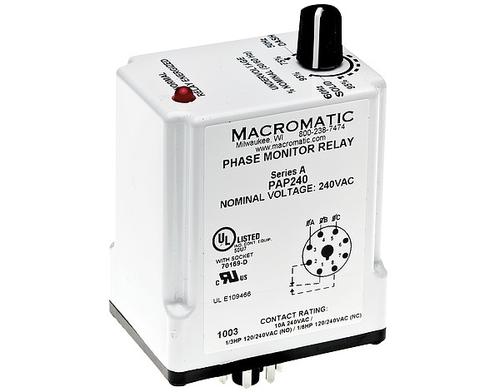

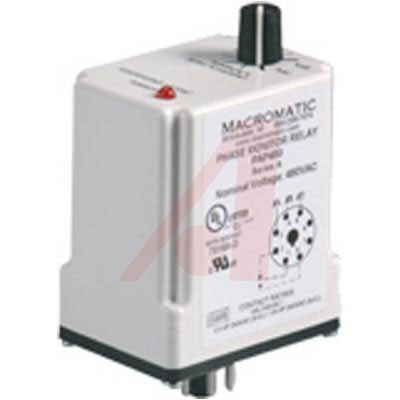

Relay; E-Mech; 3-Phase Monitor; SPDT; 10A; Ctrl-V 240V; 240AC; Socket Mnt
The PAP Series is designed to protect against phase loss, phase reversal and undervoltage. the relay is energized and the LED ON when all three phase are present in the correct sequence at a voltage level above the undervoltage setting. The undervoltage drop-out can be set at 75-95% of operating voltage. Any fault will instantaneously de-energize the relay and turn OFF the LED.
**Features:
**
* True RMS Voltage Measurement Ensures Accurate Sensing Accross More Applications
* Retains Fault Indication and Continues Monitoring Even with a Lost Phase
* Adjustable Undervoltage Setting of 75-95% Nominal Voltage
* Standard 8-Pin Octal Socket Mounting
* LED Indicates Both Normal and Fault Conditions
* Compatible with Both Wye and Delta Systems
* Automatic Reset
**PAP Protects Against:
**
* Phase Loss
* Phase Reversal
* Undervoltage
**Specifications:
**
* SPDT 10 A @ 277 VAC/30 VDC
* Dimensions: 1.7" × 2.4" × 3.5"
* Temperature: –28° to +65°C
