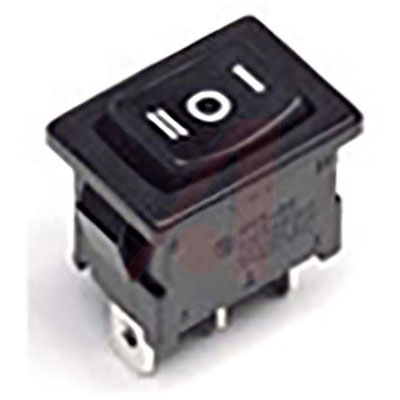

TE CONNECTIVITY / ALCOSWITCH PRASC1-16F-BBR00 船型开关
**PRAS Series**
PRAS Series power rockers from Tyco Electronics
艾睿:
Implementing this PRASC1-16F-BBR00 rocker switch from TE Connectivity will give the user complete control.
Allied Electronics:
Switch, Power, Rocker, 16A, SPST, On-Off, Quick Connect, Black
安富利:
Switch Rocker ON OFF SPST Faston Curved Rocker 16A 250VAC 372.85VA >100000Cycle Tray
Chip1Stop:
Switch Rocker ON OFF SPST Faston Curved Rocker 16A 250VAC 372.85VA >100000Cycles Tray
Verical:
Switch Rocker ON OFF SPST Quick Connect Curved Rocker 16A 250VAC 372.85VA >100000Cycles Tray
MASTER:
Switch Rocker ON OFF SPST Quick Connect Curved Rocker 16A 250VAC 372.85VA >100000Cycles Tray
触点电镀 Silver
接触器类型 Rocker
额定电流 16 A
排数 1
方向 Vertical
触点类型 SPST
触点额定电流 16.0 A
额定电流Max 16A @125VAC
额定功率Max 372.85 VA
工作温度Max 85 ℃
工作温度Min -20 ℃
接触电阻Max <50 mΩ
安装方式 Panel, Quick Connect, Snap-In
长度 21 mm
宽度 15 mm
高度 24.7 mm
颜色 Black
触点材质 Silver Tin Oxide
工作温度 -20℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536504000
