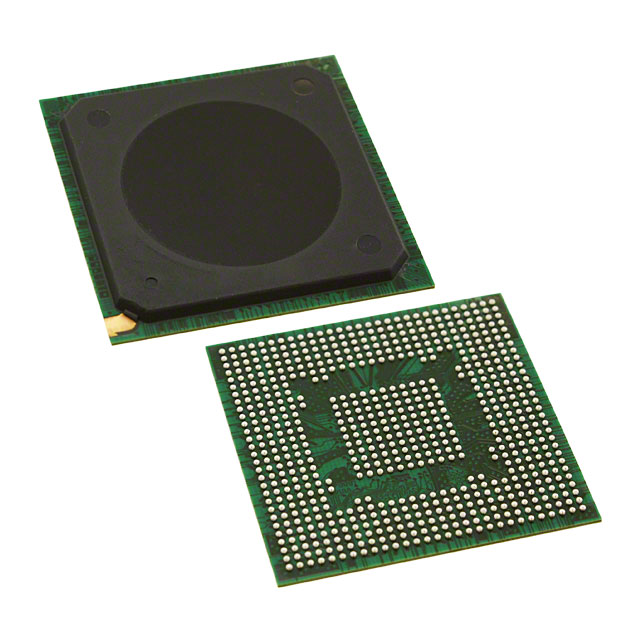

P2020NXE2HFC

MPU QorIQ RISC 32Bit 800MHz 1.5V/1.8V/2.5V/3.3V 689Pin TEPBGA II Tray

Overview

The QorIQ® P2020 and P2010 communications processors deliver high performance per watt for dual- and single-core applications. Using advanced 45nm process technology these CPUs reach frequencies up to 1.33GHz.

Pin-compatible with the QorIQ P1 family devices, the P2020 and P2010 devices offer four interchangeable cost-effective solutions, scaling from a single core at 533 MHz P1011 to a dual core at 1.33 GHz P2020 and delivering an impressive 4.5x aggregate frequency range within the same pinout.

"Products P2010NSE2MFC, P2010NSE2NHC, P2010NSN2NHC, P2010NXN2KHC, P2010NXN2MHC, P2020NSE2NHC, P2020NSN2NHC, and on this page are Not Recommended for New Designs".

MoreLess

## Features

### Core Complex

* Dual P2020 or single P2010 high-performance Power Architecture® e500 cores

* Up to 1.33 GHz

* 32 KB L1 and 512KB L2 caches

### Networking Elements

* Three 10/100/1000 Mbps enhanced three-speed Ethernet controllers eTSECs

* Four SerDes up to 3.125 GHz multiplexed across controllers supporting:

* Two PCI Express® interfaces

* Two Serial RapidIO® interfaces

* Two SGMII interfaces

### Accelerators and Memory Control

* Integrated security engine

* Protocol support includes SNOW, ARC4, 3DES, AES, RSA/ECC, RNG, single-pass SSL/TLS, Kasumi, XOR acceleration

### Basic Peripherals and Interconnect

* Dual high-speed USB controllers USB 2.0

* eLBC, eSDHC, Dual I²C, DUART, PIC, DMA, GPIO

### Additional Features

* Package: 689-pin temperature-enhanced plastic BGA TEPBGA2

* 0C to 125C Tj -40C to 125C Tj option
