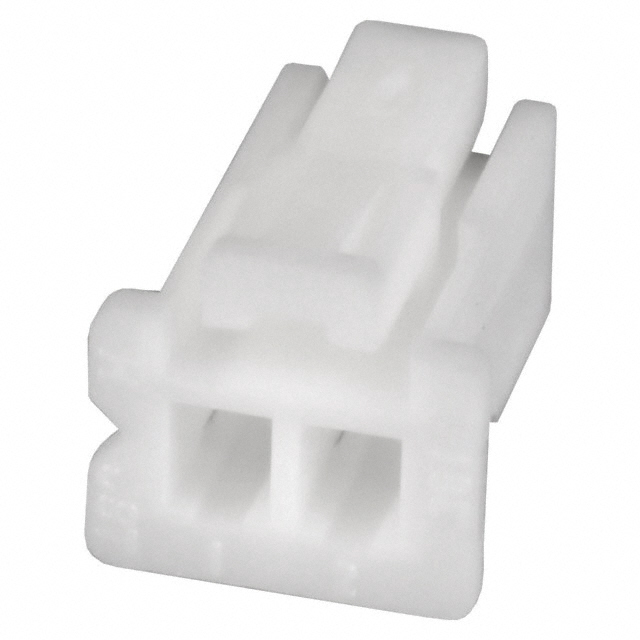

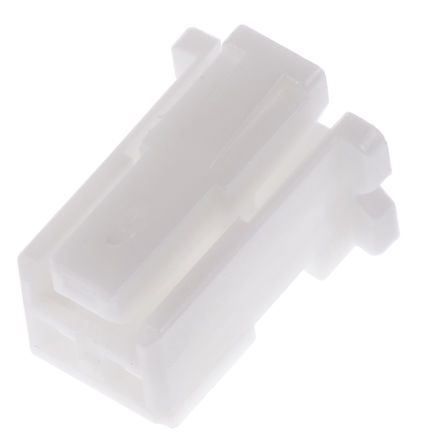

PAP-02V-S

JST JAPAN SOLDERLESS TERMINALS  PAP-02V-S  连接器外壳, PA系列, 插座, 2 路, 2 mm, SPHD Series Socket Contacts

外壳

有关合适的触点，请参阅库存号 512-8709、512-8737

对于侧面和顶部接入管座，请参见典型库存号 512-8462 和 512-8585

### 认可

UL 文件号 60389，CSA 文件号 LR20812

欧时:
外壳有关合适的触点，请参阅库存号 512-8709、512-8737 对于侧面和顶部接入管座，请参见典型库存号 512-8462 和 512-8585### 认可UL 文件号 60389，CSA 文件号 LR20812### 2.0 mm JST PA 系列2.0mm 节距 PA 互连系统提供安全的线对线连接，并具有额外的锁定设备功能。 指旋压按装置可防止在组装过程中或由于振动意外断开连接。 适合要求安全抗振连接的多种应用。提供顶部和侧面入口插头 管座具有定位导轨，插入容易且稳固 管座引脚插入力小额定电流 | 3A ---|--- 额定电压 | 250V 温度范围 | -25°C 到 +85°C

得捷:
CONN RCPT HSG 2POS 2.00MM

立创商城:
2mm 1x2P

艾睿:
This PAP-02V-S discrete wire housing from JST Corporation can also provide a locking mechanism for conditions where a lot of mechanical jarring is seen. This RCP connector has 2 RCP contacts. It has a straight body orientation. Its pitch is 2 mm. It has a receptacle type gender. It has a maximum voltage rating of 250 VDC|250VAC. This is a 1-row connector. This device has a maximum current rating of 3 A. Its wire is 22-28 AWG. This product is 6 mm long, 5.8 mm tall and 8 mm deep. This rectangle connector has an operating temperature of -25 to 85 °C. PAP-02V-S is housed in white nylon 6/6.

Chip1Stop:
Conn Housing RCP 2 POS 2mm Crimp ST Cable Mount Bag

Verical:
Conn Housing RCP 2 POS 2mm Crimp ST Cable Mount White Bag

CDI:
Housing, 2Circuit, 2.0mmPitch

Win Source:
CONN HOUSING PA 2POS 2MM WHITE
