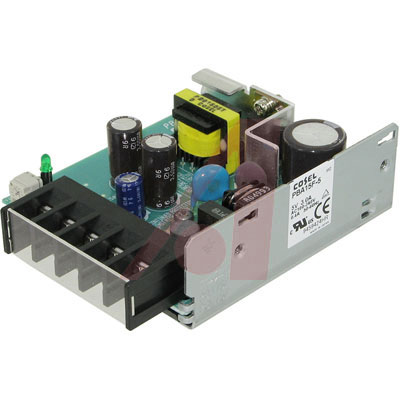

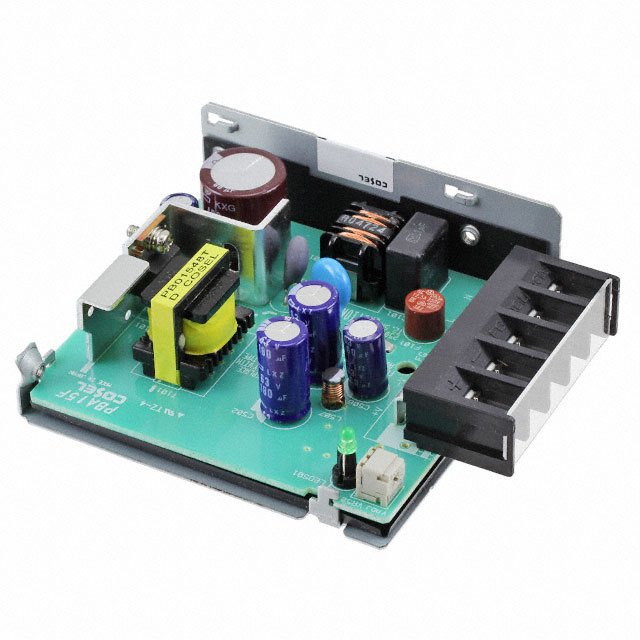

开关电源 15W 15V 1A AC-DC Power Supply

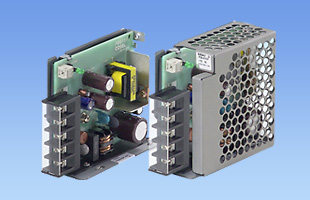

The PBA Series offers 40 different models with eight wattage ranges to chose from. Remote on/off option allows you to control the power supply without physically being there. Cover options are available.
Universal Input—85-264 VAC, 120-370 VDC
Power Factor Correction Complies with EN61000-3-2 Directive
83 ppm Documented Field Failure Rate
Over-Current Protection
Over-Voltage Protection
Remote Sensing
Remote On/Off on 300 W and Above Units
Power Alarm
Ul, C-UL, TUV and CE Approvals
Five-Year Warranty
额定功率 15 W
输出接口数 1
输出电压 15 VDC
输出电流 1 A
输出功率 15 W
输入电压DC Max 370 V
输入电压DC Min 110 V
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电流Max 1 A
输入电流Min 0.4 A
工作温度Max 71 ℃
工作温度Min -10 ℃
输入电压 85VAC ~ 264VAC, 110VDC ~ 370VDC
安装方式 Panel
长度 85 mm
宽度 78 mm
高度 34.5 mm
产品生命周期 Active
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
