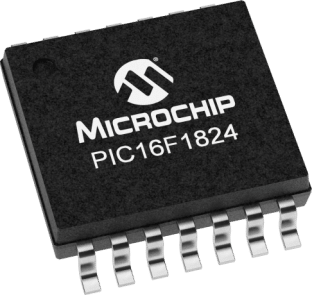

PIC16F1824T-E/ST

7KB Flash 256Bytes RAM 32MHz Int. Osc 12 I/0 Enhanced Mid Range Core

High-Performance RISC CPU:

• Only 49 Instructions to Learn:

\- All single-cycle instructions except branches

• Operating Speed:

\- DC – 32 MHz oscillator/clock input

\- DC – 125 ns instruction cycle

• Up to 8 Kbytes Linear Program Memory addressing

• Up to 256 bytes Linear Data Memory Addressing

• Interrupt Capability with Automatic Context Saving

• 16-Level Deep Hardware Stack with Optional Overflow/Underflow Reset

• Direct, Indirect and Relative Addressing modes:

\- Two full 16-bit File Select Registers FSRs

\- FSRs can read program and data memory
