SMD电感/变压器 SMD Inductor/Transformer

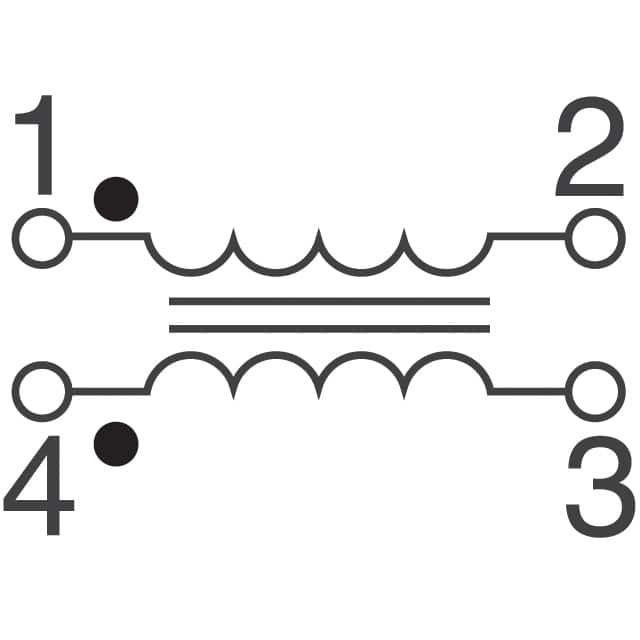

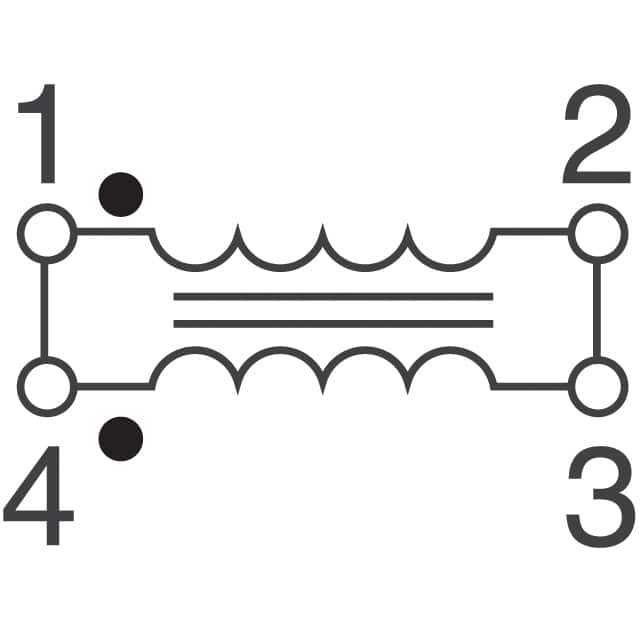

无屏蔽 线圈电感器阵列 电感 - 串联连接 电感 - 并联连接 470 毫欧最大 直流电阻 DCR - 并联 非标准
得捷:
INDUCT ARRAY 2 COIL 200UH SMD
艾睿:

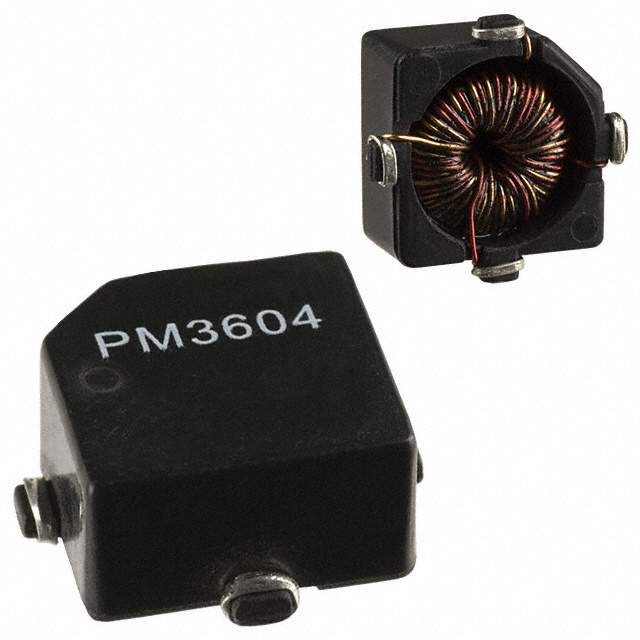

This power PM3604-200-RC surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 13.97 mm long, 6.73 mm tall and 13.97 mm deep. This SMD inductor has a maximum DC current of 650m|330m A with a maximum resistance of 0.47|1.88 Ohm. It has an inductance of 200u|800u H. This device utilizes wirewound technology. It has a tolerance of 20%.
安富利:
Ind Power Wirewound 200uH/800uH 20% Iron 650mA/330mA T/R
TME:
Inductor: wire; SMD; 14x11.5x6.73mm; ±20%; -55÷125°C; No.of wind:2
Verical:
Inductor Power Wirewound 200uH/800uH 20% Iron 0.65A/0.33A 0.47Ohm/1.88Ohm DCR T/R
MASTER:
Inductor Power Wirewound 200uH/800uH 20% Iron 650mA/330mA 0.47Ohm/1.88Ohm DCR T/R
Online Components:
Inductor Power Wirewound 200uH/800uH 20% Iron 650mA/330mA 0.47Ohm/1.88Ohm DCR T/R
Electro Sonic:
Inductor Power Wirewound 200uH/800uH 20% Iron 650mA/330mA 0.47Ohm/1.88Ohm DCR T/R
额定电流 650 mA
容差 ±20 %
电感 200 µH
屏蔽 No
电感公差 ±20 %
电阻DC) 0.47 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 4
封装 Nonstandard
长度 13.97 mm
宽度 11.48 mm
高度 6.73 mm
封装 Nonstandard
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504508000
