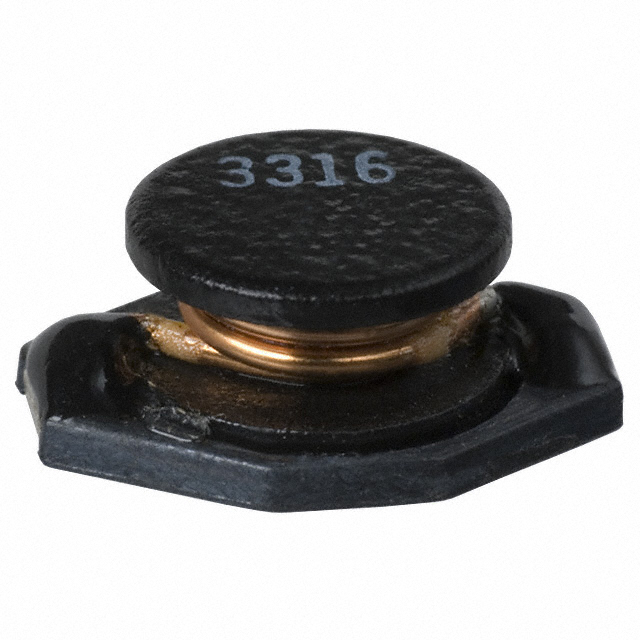

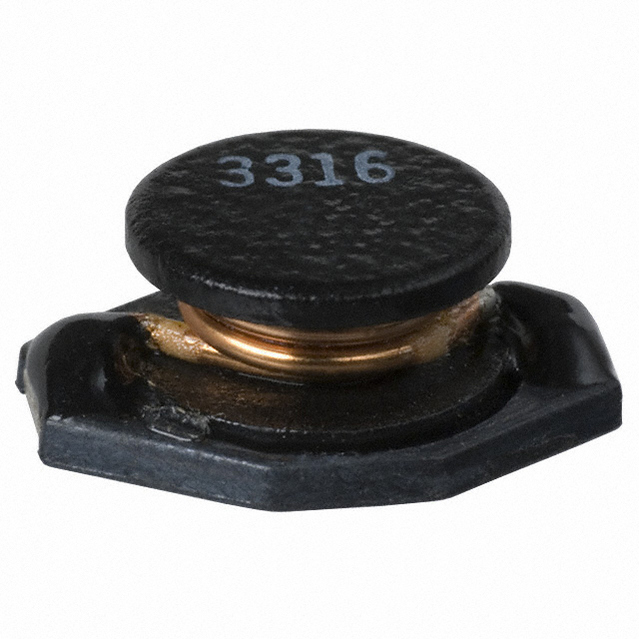

PM3316-6R8M-RC

SMD功率电感 SMD Power Inductors

无屏蔽 绕线 器 30 毫欧 非标准

得捷:
FIXED IND 6.8UH 3.4A 30 MOHM SMD

立创商城:
6.8uH ±20% 3.4A 30mΩ

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power PM3316-6R8M-RC surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 31M Hz. This SMD inductor has a maximum DC current of 3.4 A with a maximum resistance of 30m Ohm. It has a tolerance of 20%. This device is made with wirewound technology. It has an inductance of 6.8u H. This product is 12.9 mm long, 5.3 mm tall and 10.2 mm deep.

安富利:
Ind Power Wirewound 6.8uH 20% 1KHz 50Q-Factor Ferrite 3.4A T/R

Verical:
Inductor Power Wirewound 6.8uH 20% 1KHz 50Q-Factor Ferrite 3.4A 0.03Ohm DCR T/R

Newark:
# BOURNS JW MILLER  PM3316-6R8M-RC  Surface Mount Power Inductor, PM3316 Series, 6.8 µH, 3.4 A, 4.5 A, Unshielded, 0.03 ohm

MASTER:
Inductor Power Wirewound 6.8uH 20% 1KHz 50Q-Factor Ferrite 3.4A 30mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 6.8uH 20% 1KHz 50Q-Factor Ferrite 3.4A 30mOhm DCR T/R
