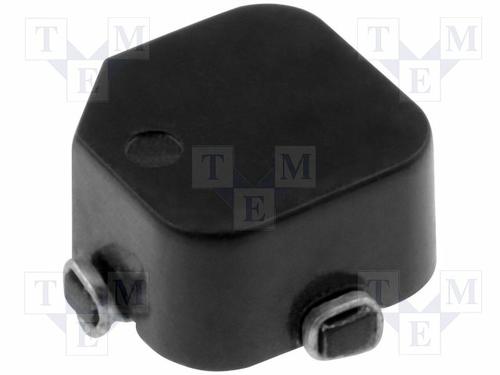

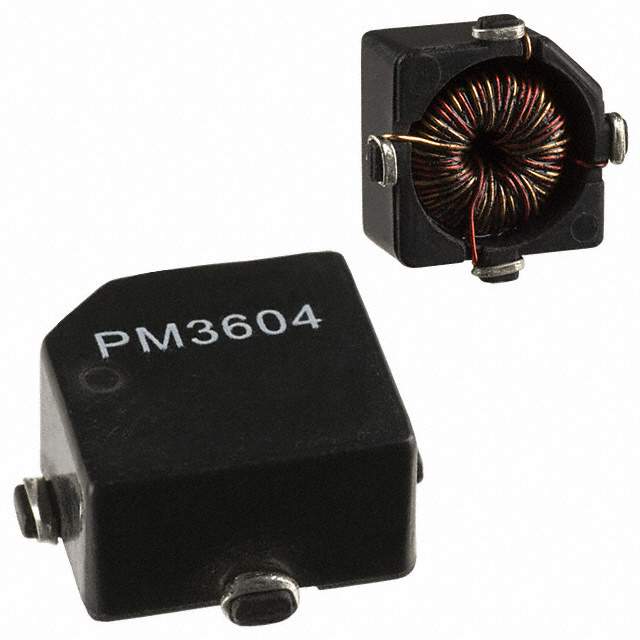

PM3604-33-RC

SMD电感/变压器 SMD Inductor/Transformer

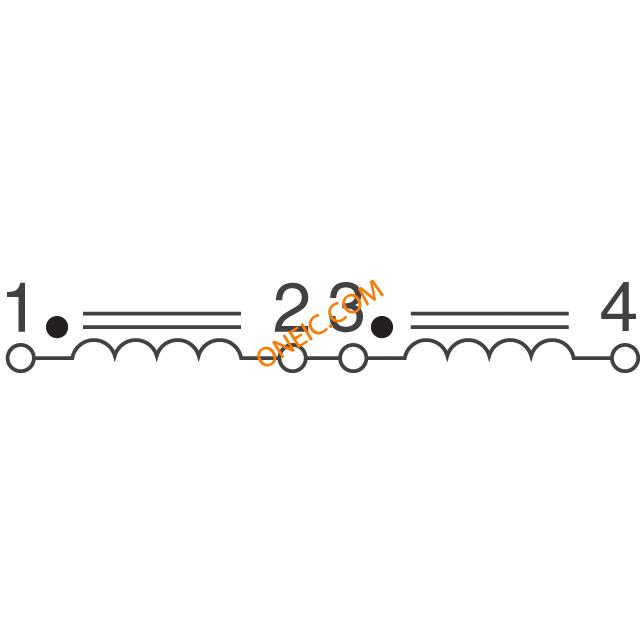

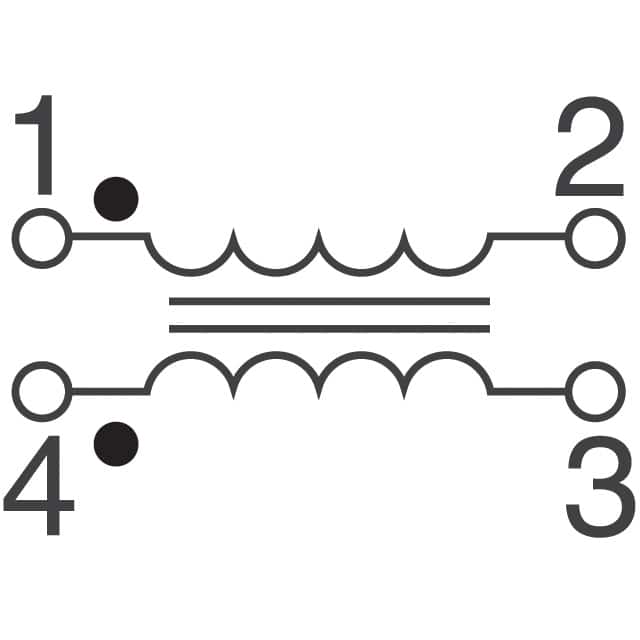

无屏蔽 线圈器阵列 电感 - 串联连接 电感 - 并联连接 78 毫欧最大 直流电阻 DCR - 并联 非标准

得捷:

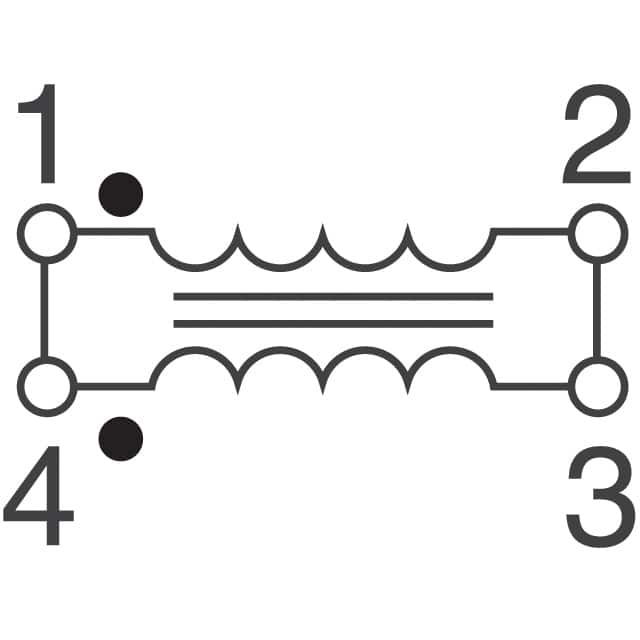

INDUCT ARRAY 2 COIL 33UH SMD

艾睿:

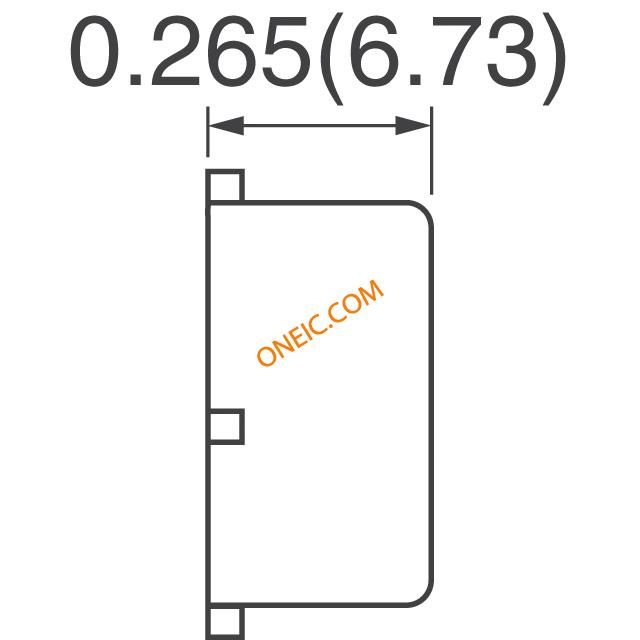

This power PM3604-33-RC surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 1.6|0.8 A with a maximum resistance of 78m|310m Ohm. This device is made with wirewound technology. It has a tolerance of 20%. This product is 13.97 mm long, 6.73 mm tall and 13.97 mm deep. It has an inductance of 33u|132u H.

安富利:
Ind Power Wirewound 33uH/132uH 20% Iron 1.6A/0.8A T/R

Chip1Stop:
Inductor Power Wirewound 33uH/132uH 20% Iron 1.6A/0.8A 78mOhm/310mOhm DCR T/R

TME:
Inductor: wire; SMD; 14x11.5x6.73mm; ±20%; -55÷125°C; No.of wind:2

Verical:
Inductor Power Wirewound 33uH/132uH 20% Iron 1.6A/0.8A 0.078Ohm/0.31Ohm DCR T/R

Newark:

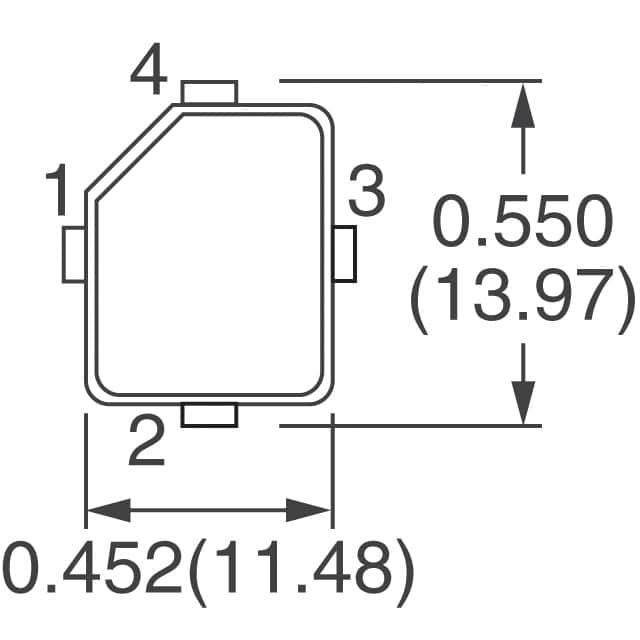

# BOURNS JW MILLER  PM3604-33-RC  Inductor, Power, 33 µH, 20%, 0.078 ohm, 1.6 A, 13.97mm x 11.48mm x 6.73mm

MASTER:
Inductor Power Wirewound 33uH/132uH 20% Iron 1.6A/0.8A 78mOhm/310mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 33uH/132uH 20% Iron 1.6A/0.8A 78mOhm/310mOhm DCR T/R
