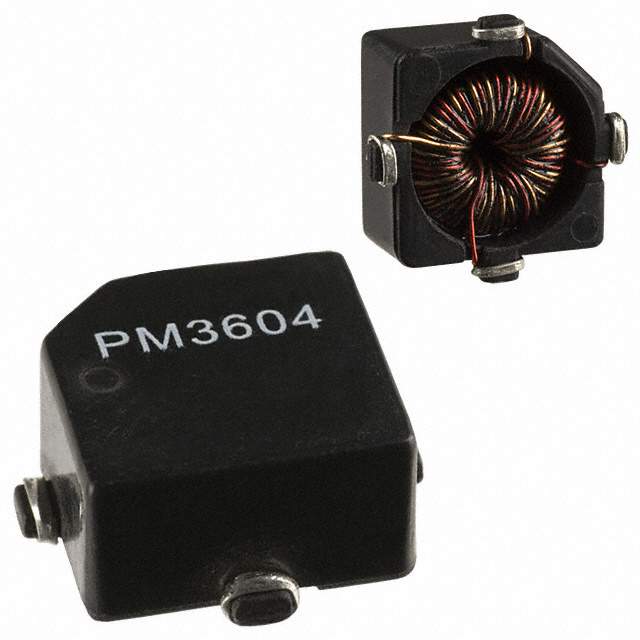

PM3604-10-RC

SMD电感/变压器 SMD Inductor/Transformer

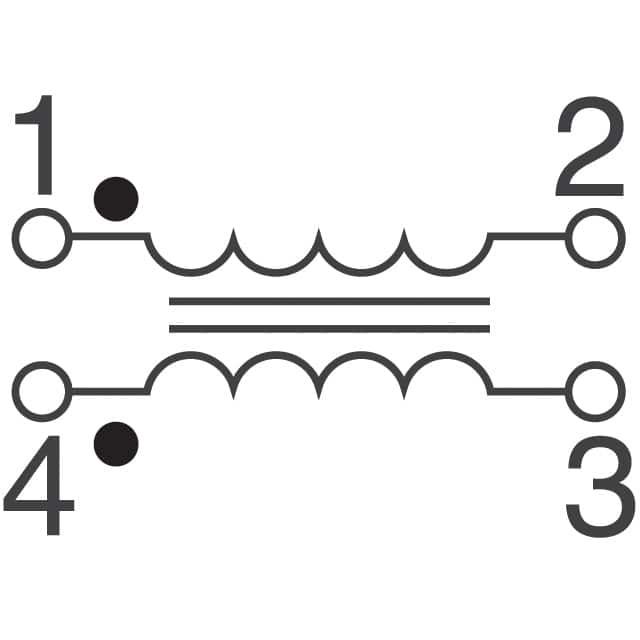

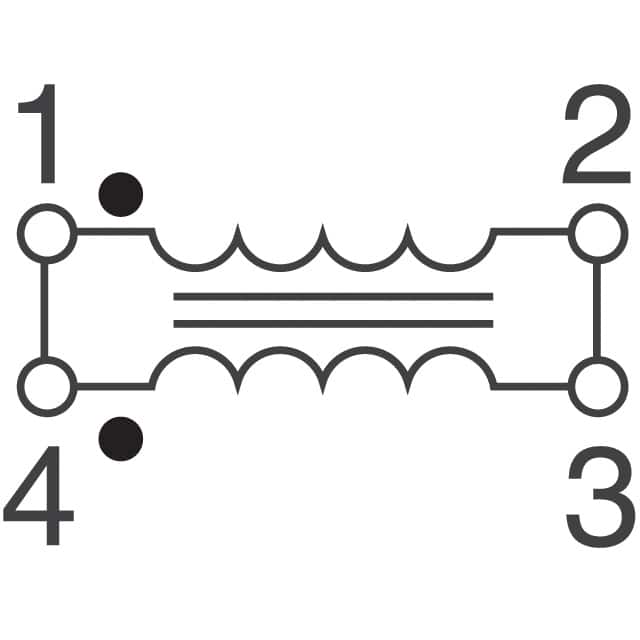

无屏蔽 2 线圈器阵列 40 µH 电感 - 串联连接 10 µH 电感 - 并联连接 28 毫欧最大 直流电阻 DCR - 并联 2.7 A 非标准

得捷:
INDUCT ARRAY 2 COIL 10UH SMD

艾睿:
Save valuable space on a PCB with this power PM3604-10-RC surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 2.7|1.35 A with a maximum resistance of 28m|110m Ohm. It has an inductance of 10u|40u H. This product is 13.97 mm long, 6.73 mm tall and 13.97 mm deep. It has a tolerance of 20%.

安富利:
Ind Power Wirewound 10uH/40uH 20% Iron 2.7A/1.35A T/R

Chip1Stop:
Inductor Power Wirewound 10uH/40uH 20% Iron 2.7A/1.35A 28mOhm/110mOhm DCR T/R

TME:

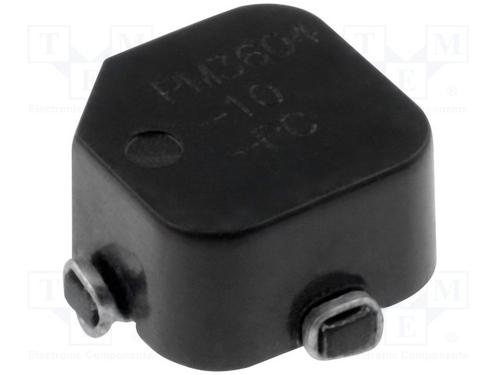

Inductor: wire; SMD; 14x11.5x6.73mm; ±20%; -55÷125°C; No.of wind:2

Verical:
Inductor Power Wirewound 10uH/40uH 20% Iron 2.7A/1.35A 0.028Ohm/0.11Ohm DCR T/R

Newark:
# BOURNS JW MILLER  PM3604-10-RC  Inductor, Power, 10 µH, 20%, 0.028 ohm, 2.7 A, 13.97mm x 11.48mm x 6.73mm

MASTER:
Inductor Power Wirewound 10uH/40uH 20% Iron 2.7A/1.35A 28mOhm/110mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 10uH/40uH 20% Iron 2.7A/1.35A 28mOhm/110mOhm DCR T/R
