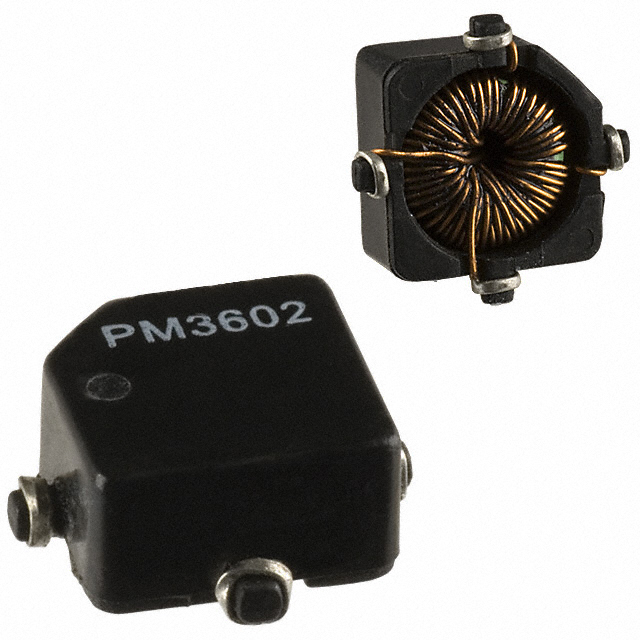

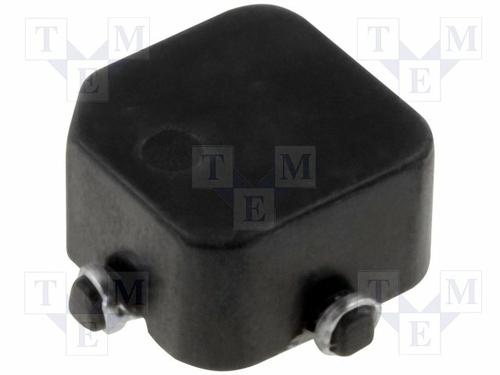

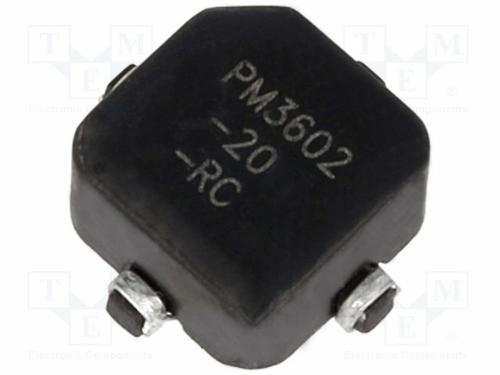

PM3602-20-RC

SMD电感/变压器 SMD Inductor/Transformer

无屏蔽 线圈器阵列 电感 - 串联连接 电感 - 并联连接 86 毫欧最大 直流电阻 DCR - 并联 非标准

得捷:
INDUCT ARRAY 2 COIL 20UH SMD

艾睿:
This power PM3602-20-RC surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 11.48 mm long, 5.72 mm tall and 11.48 mm deep. This SMD inductor has a maximum DC current of 1.25|0.63 A with a maximum resistance of 86m|340m Ohm. It has a tolerance of 20%. It has an inductance of 20u|80u H. This device is made with wirewound technology.

安富利:
Ind Power Wirewound 20uH/80uH 20% Iron 1.25A/0.63A T/R

TME:
Inductor: wire; SMD; 11.5x9x5.72mm; ±20%; -55÷125°C; No.of wind:2

Verical:
Inductor Power Wirewound 20uH/80uH 20% Iron 1.25A/0.63A 0.086Ohm/0.34Ohm DCR T/R

Newark:
# BOURNS JW MILLER  PM3602-20-RC  Inductor, Power, 20 µH, 20%, 0.086 ohm, 1.25 A, 11.48mm x 8.99mm x 5.72mm

MASTER:
Inductor Power Wirewound 20uH/80uH 20% Iron 1.25A/0.63A 86mOhm/340mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 20uH/80uH 20% Iron 1.25A/0.63A 86mOhm/340mOhm DCR T/R
