SMD电感/变压器 SMD Inductor/Transformer

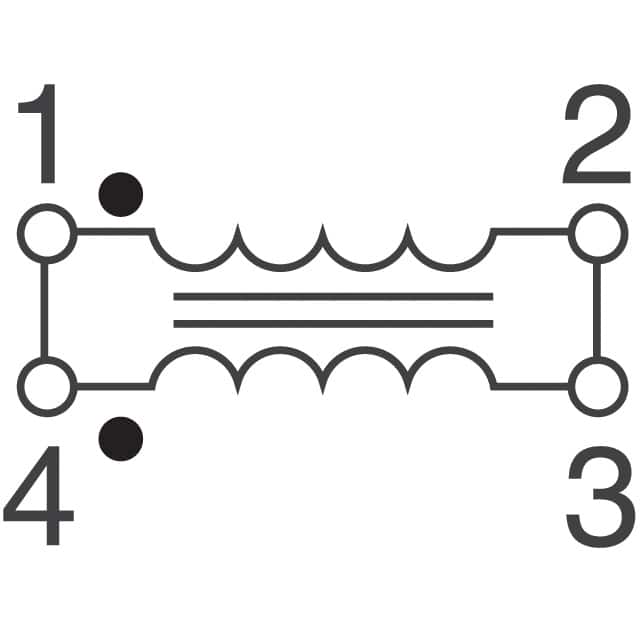

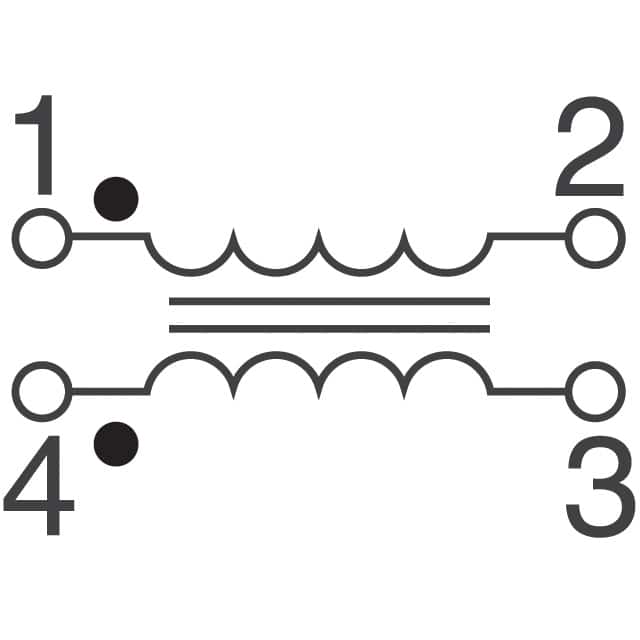

无屏蔽 线圈器阵列 电感 - 串联连接 电感 - 并联连接 120 毫欧最大 直流电阻 DCR - 并联 非标准
得捷:

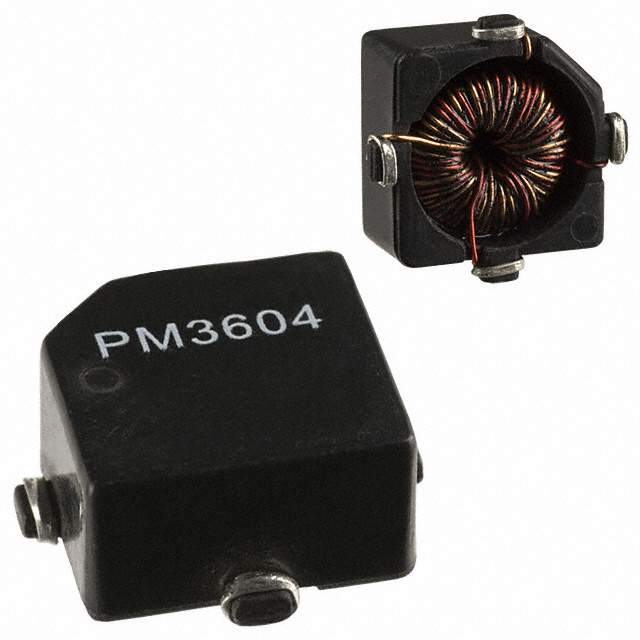

INDUCT ARRAY 2 COIL 50UH SMD
艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power PM3604-50-RC surface mount inductor from Bourns to save valuable space. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 1.28|0.64 A with a maximum resistance of 120m|480m Ohm. This product is 13.97 mm long, 6.73 mm tall and 13.97 mm deep. It has an inductance of 50u|200u H. It has a tolerance of 20%. This device is made with wirewound technology.
安富利:
Ind Power Wirewound 50uH/200uH 20% Iron 1.28A/0.64A T/R
Chip1Stop:
Ind Power Wirewound 50uH/200uH 20% Iron 1.28A/0.64A T/R
TME:

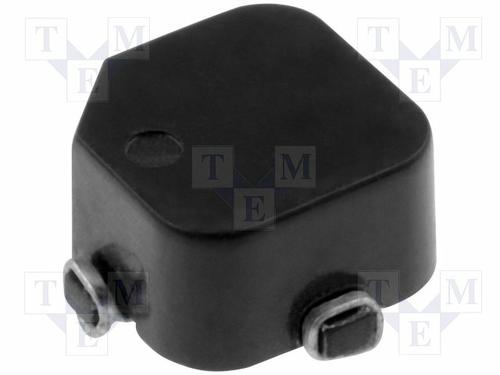

Inductor: wire; SMD; 14x11.5x6.73mm; ±20%; -55÷125°C; No.of wind:2
Verical:
Inductor Power Wirewound 50uH/200uH 20% Iron 1.28A/0.64A 0.12Ohm/0.48Ohm DCR T/R
Newark:
# BOURNS JW MILLER PM3604-50-RC Inductor, Power, 50 µH, 20%, 0.12 ohm, 1.28 A, 13.97mm x 11.48mm x 6.73mm
MASTER:
Inductor Power Wirewound 50uH/200uH 20% Iron 1.28A/0.64A 120mOhm/480mOhm DCR T/R
Electro Sonic:
Inductor Power Wirewound 50uH/200uH 20% Iron 1.28A/0.64A 120mOhm/480mOhm DCR T/R
额定电流 1.28 A
容差 ±20 %
电感 200 µH
屏蔽 No
电感公差 ±20 %
电阻DC) 0.12 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 4
封装 Nonstandard
长度 13.97 mm
宽度 11.48 mm
高度 6.73 mm
封装 Nonstandard
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
