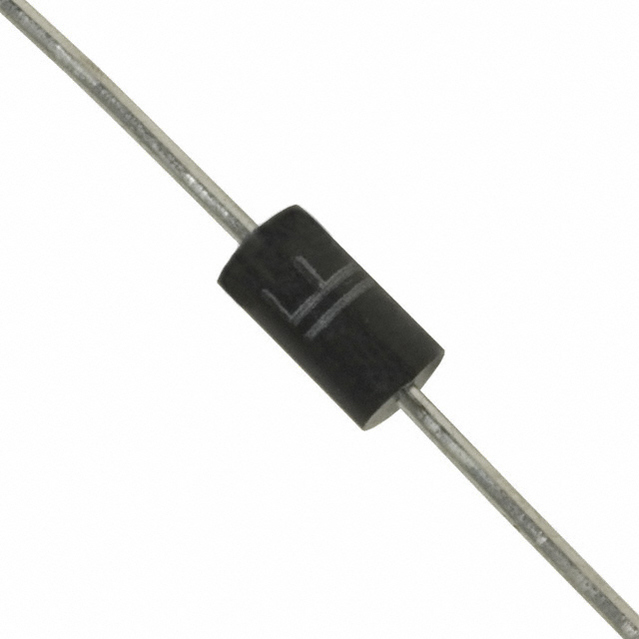

P6KE550CA

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

760V 夹子 800mA Ipp TVS - 通孔 DO-204AC（DO-15）

得捷:
TVS DIODE 468VWM 760VC DO204AC

艾睿:
Protect vulnerable electronic circuits against overvoltages by equipping your device with this P6KE550CA TVS diode from Littelfuse. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 600 W. This device&s;s maximum clamping voltage is 760 V and minimum breakdown voltage is 522.5 V. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.

Chip1Stop:
Diode TVS Single Bi-Dir 495V 600W 2-Pin DO-15 T/R

Verical:
Diode TVS Single Bi-Dir 468V 600W 2-Pin DO-15 T/R
