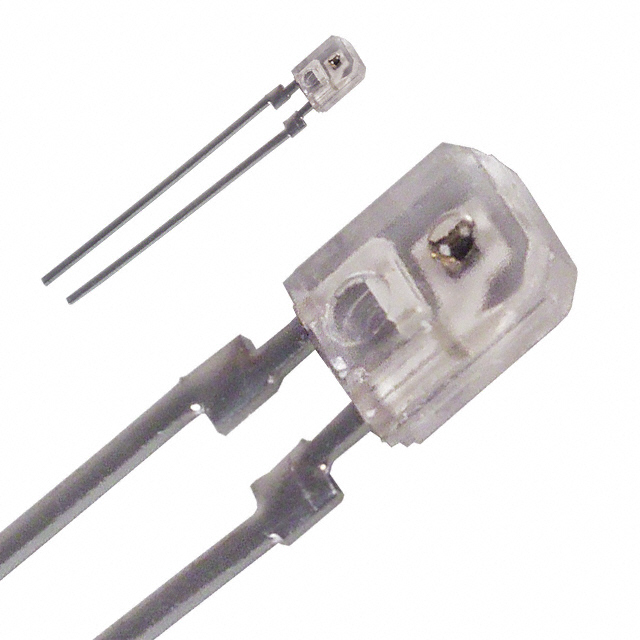

Phototransistor IR Chip 800nm 2Pin Thin Type
Phototransistors 800nm Side View Radial
得捷: SENSOR PHOTO 800NM SIDE VIEW RAD
Chip1Stop: Phototransistor IR Chip 800nm 2-Pin Thin Type
AMEYA360: PHOTO TRANS CLEAR LEN 800NM SIDE
输出电流 ≤20.0 mA
波长 800 nm
视角 70°
上升时间 3.00 µs
击穿电压集电极-发射极 35 V
额定功率Max 75 mW
安装方式 Through Hole
封装 Radial
工作温度 -25℃ ~ 85℃ TA
产品生命周期 End of Life
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
