射频识别芯片, 13.56 MHz, NFC控制器, 读取, 写入, FeliCa PCD模式, 1.65 V至1.95 V电源, HVQFN-40
Overview
Optimized for fast design-in, ’s PN7150 NFC solutions fully comply with the NFC Forum, include Linux®, Android™, and WinIoT drivers and support NCI 1.0 host communication.
PN7150 is the high-performance version of PN7120, the plug’n play NFC solution for easy integration into any OS environment, reducing Bill of Material BOM size and cost. PN71xx controller are ideal for home-automation applications such as gateways and work seamlessly with NFC connected tags.
These NFC controllers support the most popular platforms, Raspberry Pi®, BeagleBone® Black and any boards featuring an Arduino® stackable header, including Kinetis®, LPCXpresso and i.MX boards.
MoreLess
## Features
### Full hardware and software compatibility
* Support for Linux, Android, Windows IoT, RTOS, NullOS
* Interface to Raspberry Pi, BeagleBone Black, and all boards with Arduino-compatible header
### All NFC operating modes
* Read/Write Mode: ISO/IEC 14443 A&B up to 848 kbit/s, FeliCa at 212 & 424 kbit/s, MIFARE 1K, 4K, NFC Forum type 1, 2, 3, 4, 5 tags, ISO/IEC 15693
* All peer-to-peer modes
* Card Emulation Mode from host: NFC Forum T4T ISO/IEC 14443 A&B at 106 kbit/s, NFC Forum T3T FeliCa, PN7150 only
### Flexible host interface
* Supply voltage: 1.8 to 3.3 V
* I2C interface: 3.4 Mbit/s
* NCI 1.0-compliant protocol
* IRQ signal for improved synchronization
### Complete, power-efficient NFC control
* RF driver: 3.0 to 4.75 V, 180mA max PN7150; 2.7 to 3.3 V, 180mA max PN7120
* Implemented according to device requirements v1.3
* Fully configurable polling loop with low-power mode
* Load modulation scheme: active PN7150, passive PN7120
### Standard packages
* HVQFN40 PN7150
* VFBGA49 PN7120
频率 13.56 MHz
电源电压DC 1.65V min
供电电流 190 mA
针脚数 40
工作温度Max 85 ℃
工作温度Min -30 ℃
电源电压 2.3V ~ 5.5V
电源电压Max 1.95 V
电源电压Min 1.65 V
引脚数 40

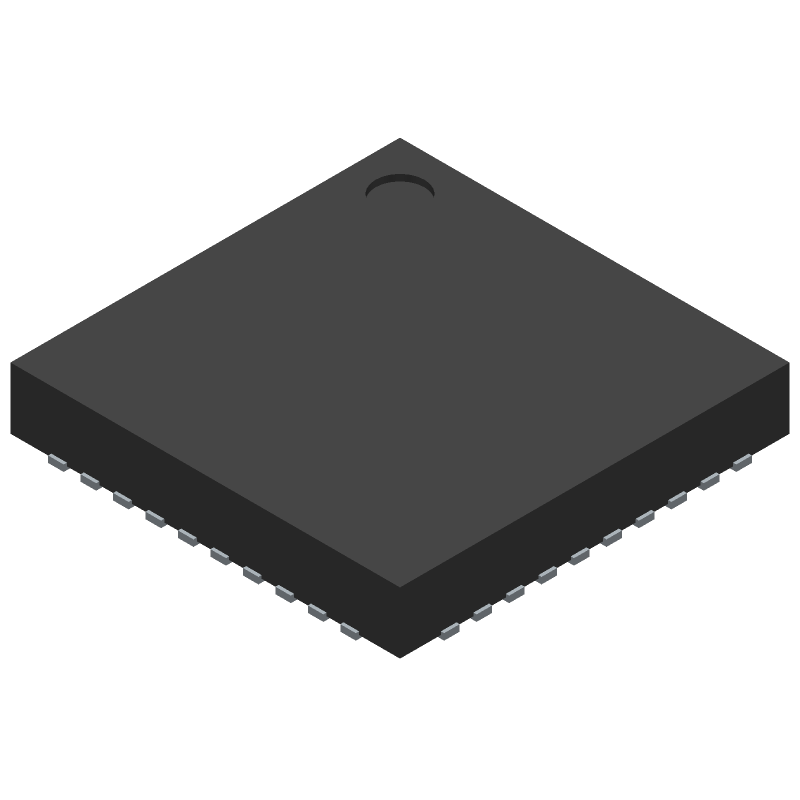

封装 HVQFN-40
封装 HVQFN-40
重量 95.253232725 mg
工作温度 -30℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 5A992
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PN7150B0HN/C11002Y NXP 恩智浦 | 当前型号 | 当前型号 |
PN7150B0UK/C11002Z 恩智浦 | 功能相似 | PN7150B0HN/C11002Y和PN7150B0UK/C11002Z的区别 |
