PTFA180701FV4R0XTMA1

High Power RF LDMOS FET, 70W, 28V, 1805 – 1880MHz

Summary of Features:

.

Broadband input and output matching

.

Typical EDGE performance

\- Average output power = 44 dBm

\- Gain = 16.5 dB

\- Efficiency = 40.5%

\- EVM = 2.0%

.

Typical CW performance

\- Output power at P1dB = 72 W

\- Gain = 15.5 dB

\- Efficiency = 59%

.

Capable of handling 10:1 VSWR @ 28 V, 70 W CW output power

.

Integrated ESD protection. Human Body Model, Class 2 minimum

.

Excellent thermal stability, low HCI drift

.

Pb-free and RoHS compliant

.

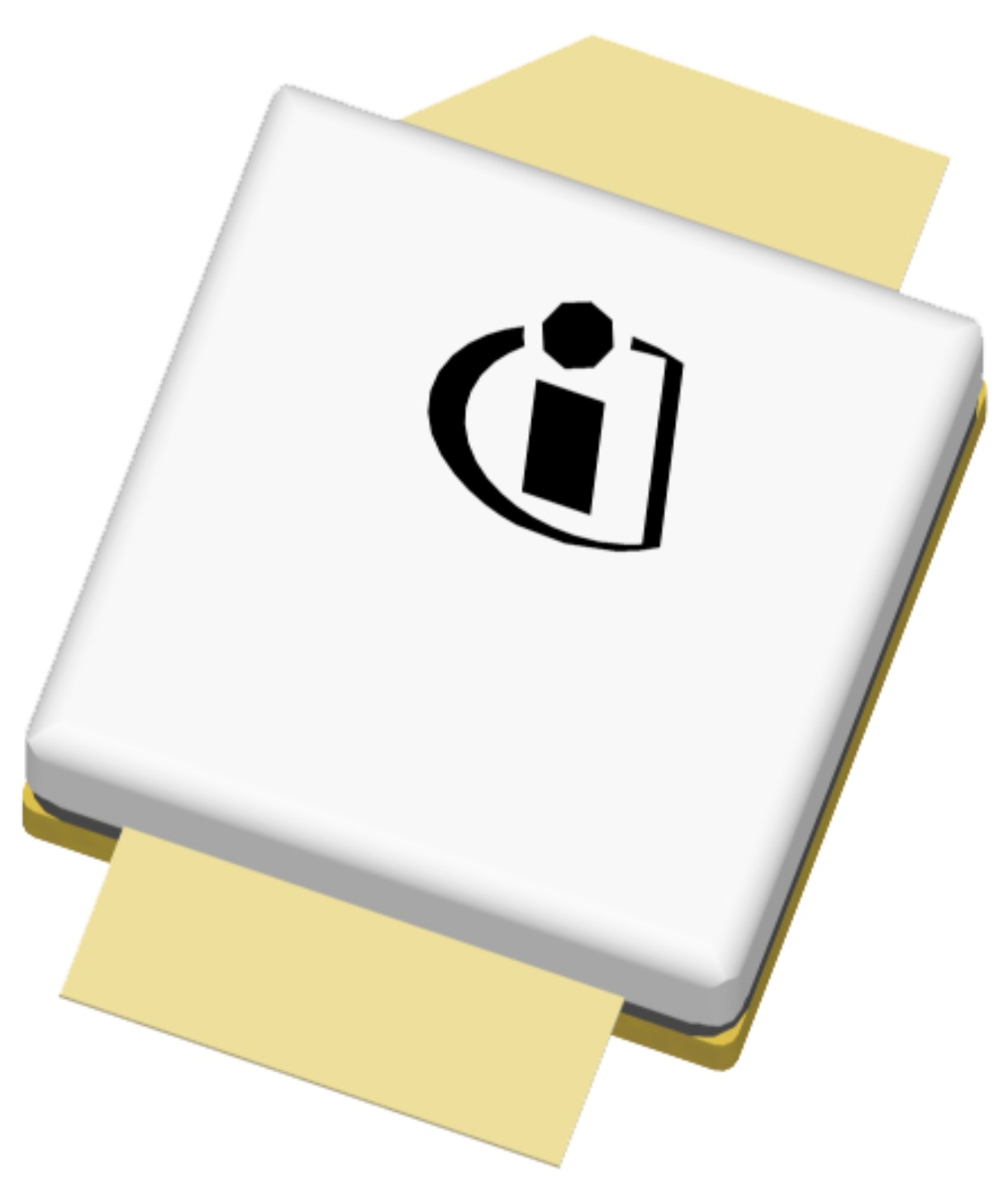

Package: H-37265-2, earless
