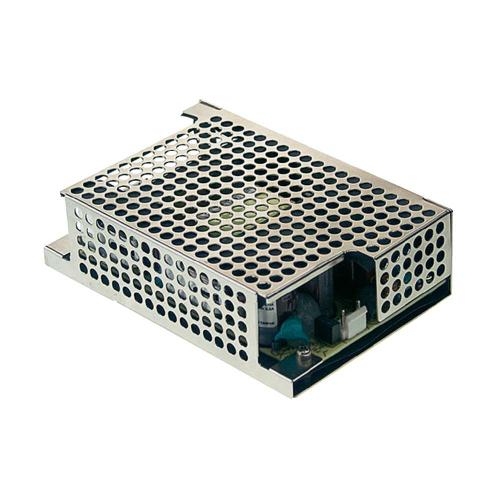

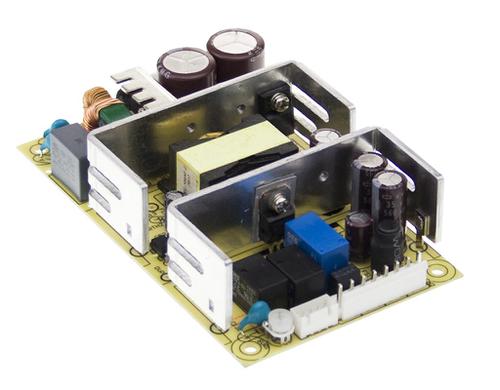

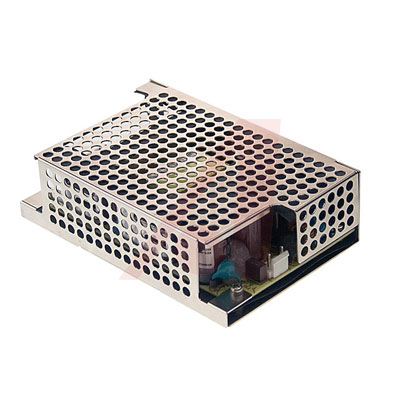

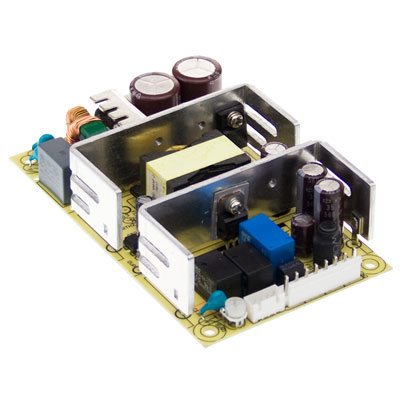

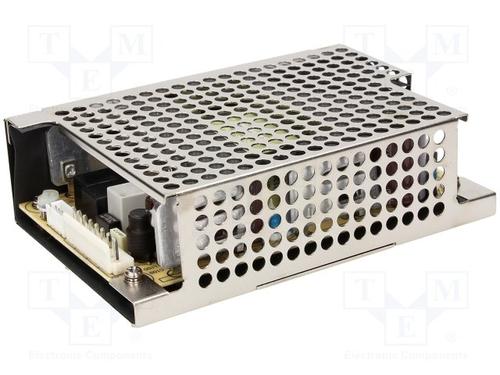

PSC100 系列 13.8 V 100 W 单输出 带 电池充电器
Look no further than Mean-Well USA, Inc."s battery charger when your devices" batteries are depleted. It has a voltage of 13.8|13.8 V and maximum output power of 100.05 W. This part"s single output can handle a current up to 4.75|2.5 A. This part has an input voltage of 90 to 264. This part has a minimum operating temperature of -20 °C and a maximum of 70 °C.
得捷:
AC/DC CONVERTER 13.8V 13.8V 100W
贸泽:
Switching Power Supplies 13.8V@7A, 13.8V@2.5A L-Bracket and Cover
艾睿:
AC/DC Power Supply Dual-OUT 13.8V/13.8V 4.75A/2.5A 100.05W 10-Pin
Allied Electronics:
Battery Charger; Enclosed; 100W Battery Charger; +13.8V4.72A +13.8V2.5A
Jameco:
100 Watt Open Power Supply With Battery Charger 13.8-13.8 Volt DC
TME:
Pwr sup.unit: buffer; 100.05W; 127÷370VDC; 90÷264VAC; Outputs:2
MASTER:
AC/DC Power Supply Dual-OUT 13.8V/13.8V 4.75A/2.5A 100.05W 10-Pin
Online Components:
AC/DC Power Supply Dual-OUT 13.8V/13.8V 4.75A/2.5A 100.05W 10-Pin
CDI:
AC/DC 100.05W 13.8V UPS Enclosed
Electro Sonic:
AC/DC Power Supply Dual-OUT 13.8V/13.8V 4.75A/2.5A 100.05W 10-Pin
额定功率 100.05 W
输出接口数 2
输出电压 13.8 V
输出电流 4.75 A
输出功率 100 W
输入电压DC Max 370 V
输入电压DC Min 127 V
输入电压AC Max 264 V
输入电压AC Min 90 V
输入电流Min 2.5 A
输出功率Max 100 W
工作温度Max 70 ℃
工作温度Min -20 ℃
电源电压 90.264VAC, 127.370VDC
输入电压 90V ~ 264V
安装方式 Chassis
引脚数 10
封装 100
长度 127 mm
宽度 76.2 mm
高度 30.988 mm
封装 100
重量 440 g
工作温度 -20℃ ~ 70℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409520
