PL303QMT

PL303QMT图片1

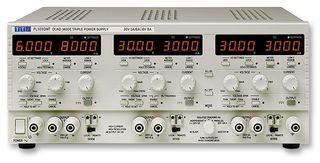

PL303QMT图片2

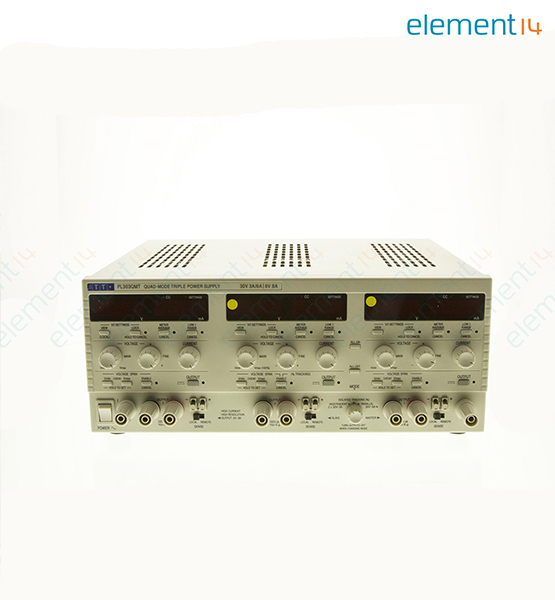

PL303QMT图片3
PL303QMT概述

Power Supply, 3CH, 30V, 8A, Adjustable

The offers three full-performance linearly regulated outputs in a compact format. Unlike many triple output PSUs, the third output has fully variable voltage and current with high resolution and selectable remote sense. Voltage is variable from 0V to 6V with 1mV resolution, and current is fully variable up to 8A with 1mA or 0.1mA resolution. All of the normal facilities including S-Lock and V-Span are included.

.
Linear regulation provides ultra-low noise
.
Highly compact 1/4 rack 3U with small bench footprint
.
True analogue controls with advanced digital features
.
Settings can be locked at the touch of a button
.
4 digit voltage and current meters on each output
.
Low current range with 0.1mA resolution
.
Constant voltage or constant current operation
.
Independent, tracking or true parallel modes
PL303QMT中文资料参数规格
技术参数

额定功率 228 W

输出接口数 3

输出电压 0.00 V min, 30.0 V max

输出电流 ≥0.00 A

输出电压Max 30 V

输出电压Min 0 V

输出电流Max 8 A

输出电流Min 0 A

电源电压Max 230 VAC

电源电压Min 115 VAC

输入电压 115VAC, 230VAC

物理参数

重量 13.0 kg

符合标准

RoHS标准 Non-Compliant

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买PL303QMT
型号: PL303QMT
制造商: AIM-TTI Instruments
描述:Power Supply, 3CH, 30V, 8A, Adjustable
替代型号PL303QMT
型号/品牌 代替类型 替代型号对比

PL303QMT

AIM-TTI Instruments

当前型号

当前型号

PL303QMTP

AIM-TTI Instruments

完全替代

PL303QMT和PL303QMTP的区别

PL303QMTPG

AIM-TTI Instruments

完全替代

PL303QMT和PL303QMTPG的区别

PL303P

AIM-TTI Instruments

类似代替

PL303QMT和PL303P的区别
