PSC-35A-C

PSC-35A-C图片1
PSC-35A-C图片2

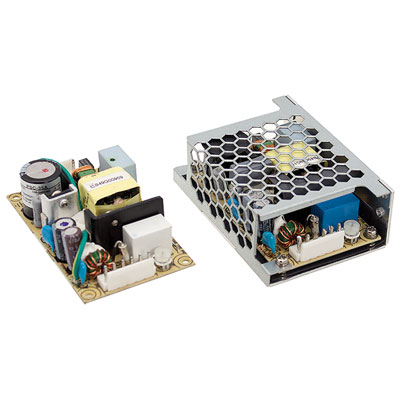

PSC-35A-C图片3

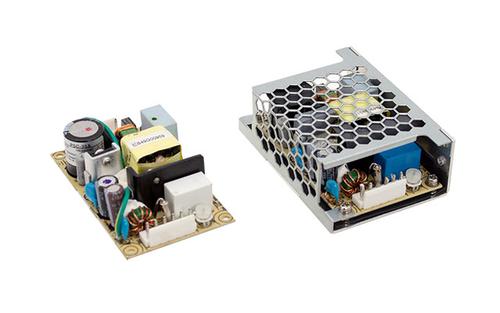

PSC-35A-C图片4

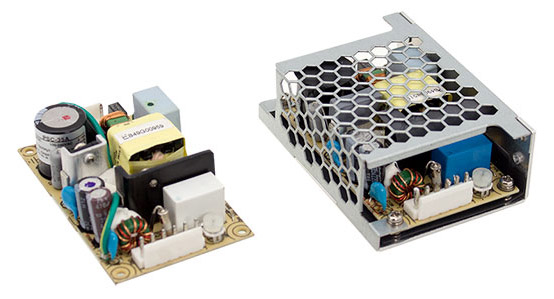

PSC-35A-C图片5
PSC-35A-C概述

Battery Chargers 1Out 13.8V/13.8V 1.7A/0.9A 35.88W 9Pin

Look no further than Mean-Well USA, Inc."s battery charger when your devices" batteries are depleted. It has a voltage of 13.8|13.8 V and maximum output power of 35.88 W. This part"s single output can handle a current up to 1.7|0.9 A. This part has an input voltage of 90 to 264. This part has a temperature range of -30 °C to 70 °C.


艾睿:
Look no further than Mean-Well USA, Inc.&s;s PSC-35A-C battery charger when your devices&s; batteries are depleted. It has a voltage of 13.8|13.8 V and maximum output power of 35.88 W. This part&s;s single output can handle a current up to 1.7|0.9 A. This part has an input voltage of 90 to 264. This part has a temperature range of -30 °C to 70 °C.


Jameco:
2 Channel 35 W Single Output w/ Battery Charger Power Supply


TME:
Pwr sup.unit: buffer; modular; 35.88W; 13.8VDC; 13.8VDC; 1.7A; 0.9A


MASTER:
AC/DC Power Supply Dual-OUT 13.8V/13.8V 1.7A/0.9A 25.88W 8-Pin


Online Components:
AC/DC Power Supply Dual-OUT 13.8V/13.8V 1.7A/0.9A 25.88W 8-Pin


Electro Sonic:
AC/DC Power Supply Dual-OUT 13.8V/13.8V 1.7A/0.9A 25.88W 8-Pin


CDI:
Enclosed Type 35W AC/DC Power Supply with 13.8V 1.7A primary output and 13.8V 0.9V Battery Charger UPS Function


PSC-35A-C中文资料参数规格
技术参数

额定功率 35.88 W

输出接口数 2

输出电压 13.8 V

输出电流 1.7 A

输出功率 25.88 W

输入电压DC Max 370 V

输入电压DC Min 127 V

输入电压AC Max 264 V

输入电压AC Min 90 V

输入电流Min 0.75 A

输出功率Max 35.88 W

工作温度Max 70 ℃

工作温度Min -30 ℃

电源电压 90.264VAC, 127.370VDC

封装参数

引脚数 8

物理参数

颜色 Silver

重量 145 g

工作温度 -20℃ ~ 70℃

符合标准

RoHS标准 RoHS Compliant

海关信息

ECCN代码 EAR99

数据手册

在线购买PSC-35A-C
型号: PSC-35A-C
制造商: Mean Well 台湾明纬
描述:Battery Chargers 1Out 13.8V/13.8V 1.7A/0.9A 35.88W 9Pin
