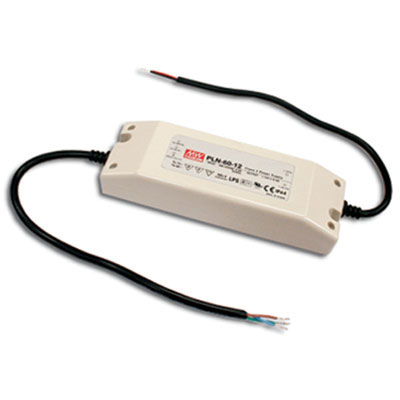

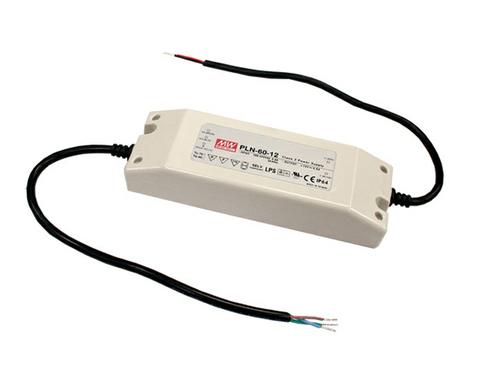

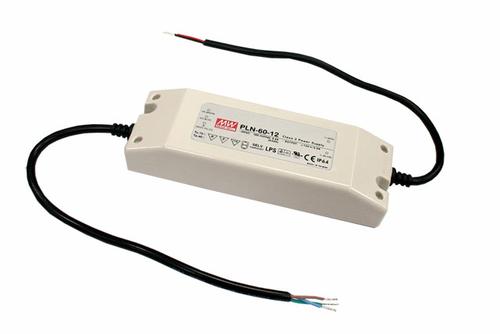

60 W 单组输出 20 V AC/DC LED 电源 带内置PFC功能
3A 14 ~ 20V 恒定电流 LED 驱动器 AC DC 转换器 拓扑 1 输出
得捷:
LED DRIVER CC AC/DC 14-20V 3A
艾睿:
AC/DC Power Supply Single-OUT 20V 3A 60W 5-Pin
Allied Electronics:
Power Supply; AC-DC; 20V@3A; 100-295V In; Sealed; Panel Mount; LED Driver; PLN Series
Jameco:
AC to DC Power Supply Enclosed LED Single Output 20 Volts 3 Amps 60 Watts
Chip1Stop:
AC/DC Power Supply Single-OUT 20V 3A 60W 5-Pin
TME:
Pwr sup.unit: switched-mode; LED; 60W; 20VDC; 14÷20VDC; 3A; IP64
MASTER:
AC/DC LED Power Supply - Const Curr - 60W - Adj:20 Vdc @ 3,000mA - Dim: No
Online Components:
AC/DC Power Supply Single-OUT 20V 3A 60W 5-Pin , Cannot use w/AC Wall Dimmer
Electro Sonic:
AC/DC LED Power Supply - Const Curr - 60W - Adj:20 Vdc @ 3,000mA - Dim: No
CDI:
LED Driver CC, CV 60W 2.25-3.09A Linear 14-22Vdc 90-295Vac PFC Non-Dimming Internal Pot Adj Vo & Io IP64 Plastic Enclosure
额定功率 60 W
输出接口数 1
输出电压 20 V
输出电流 3 A
输入电流 0.8 A
输出功率 60 W
输出电流Max 3000 mA
输入电流Min 0.8 A
输出功率Max 60 W
工作温度Max 50 ℃
工作温度Min -30 ℃
电源电压 90.264VAC, 127.417VDC
输入电压 90V ~ 265V
引脚数 5
封装 Plastic Enclosure
封装 Plastic Enclosure
重量 500 g
工作温度 -30℃ ~ 50℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409520
