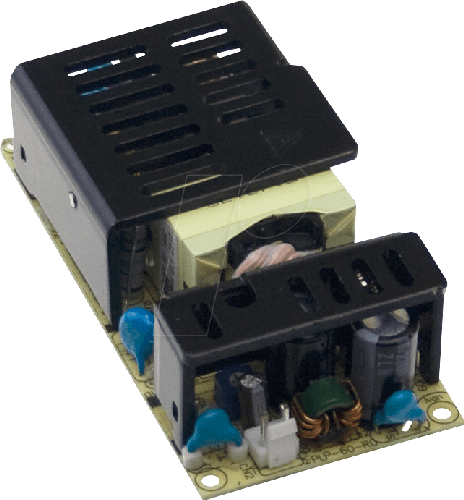

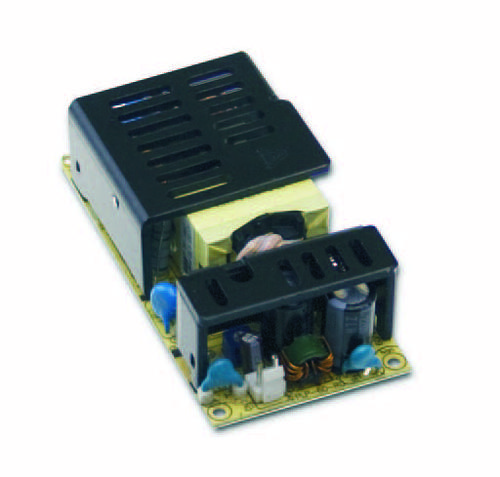

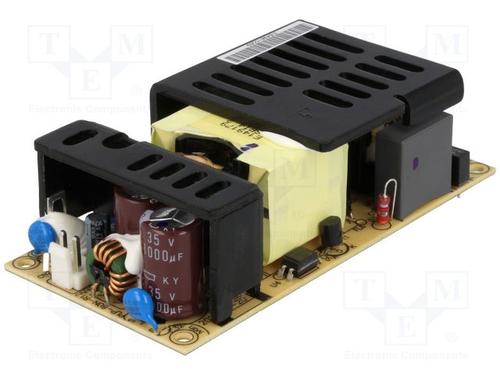

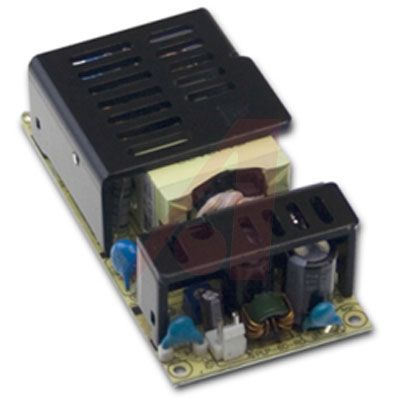

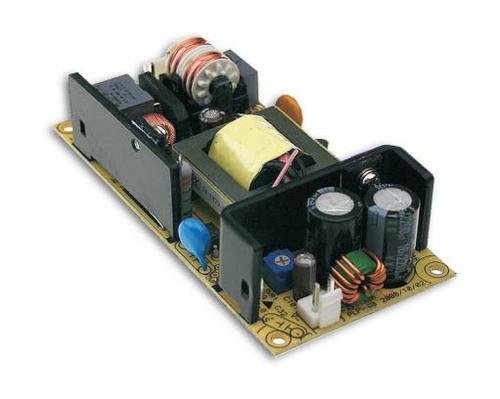

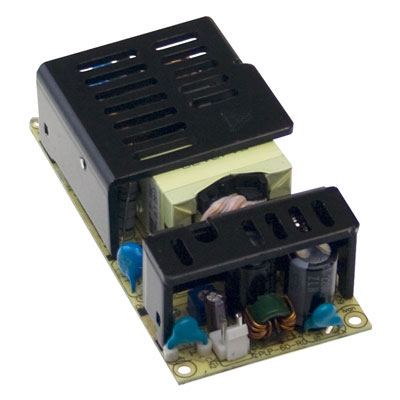

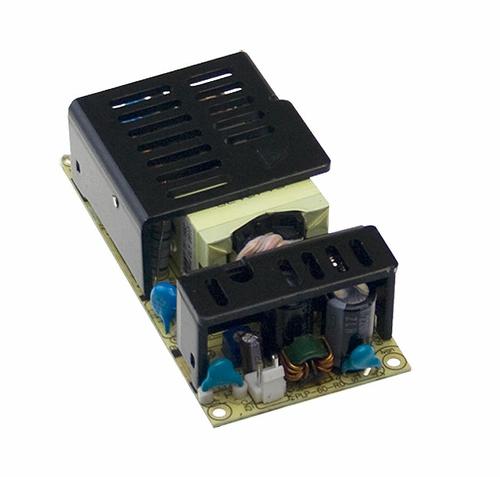

PLP-45 系列 45 W 3.8 A 12 V 单输出 LED 电源
Universal AC input / Full range
Short circuit, over current, over voltage protection
Built-in active PFC function
Cooling by free air convection
Class 2 power unit
Output current level adjustable
100 percent full load burn-in test
High reliability
Suitable for built-in applications of LED lighting
2 years warranty
得捷:
LED DRIVER CC AC/DC 9-12V 3.8A
艾睿:
AC/DC Power Supply Single-OUT 12V 3.8A 45.6W 4-Pin
Allied Electronics:
Power Supply; AC-DC; 12V@3.8A; 100-264V In; Open Frame; Pnl Mnt; LED Driver; PLP Series
Jameco:
AC to DC Power Supply Enclosed LED Single Output 12 Volts 3.8 Amps 45.6 Watts
Chip1Stop:
AC/DC Power Supply Single-OUT 12V 3.8A 45.6W 4-Pin
TME:
Pwr sup.unit: switched-mode; LED; 45.6W; 12VDC; 2.85÷3.8A; 160g
MASTER:
AC/DC LED Power Supply - Const Curr - 45.6W - Adj: 12 Vdc @ 3,800mA - Dim: No
Electro Sonic:
AC/DC LED Power Supply - Const Curr - 45.6W - Adj: 12 Vdc @ 3,800mA - Dim: No
CDI:
LED Driver CC, CV 45W 2.85-3.8A Linear 9-Vdc 90-264Vac PFC Non-Dimming Internal Pot Adj Io Open Frame
额定功率 45.6 W
输出接口数 1
输出电压 12 VDC
输出电流 3.8 A
输出功率 45.6 W
隔离电压 3.75 kV
输入电压Max 264 VAC
输入电压Min 90 VAC
输出电流Max 3800 mA
输入电流Min 0.6 A
输出功率Max 45.6 W
工作温度Max 70 ℃
工作温度Min -30 ℃
电源电压 90.264VAC, 127.370VDC
输入电压 90VAC ~ 264VAC, 127VDC ~ 370VDC
安装方式 Chassis
引脚数 4
封装 Open Frame
封装 Open Frame
重量 160 g
工作温度 -30℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409510
