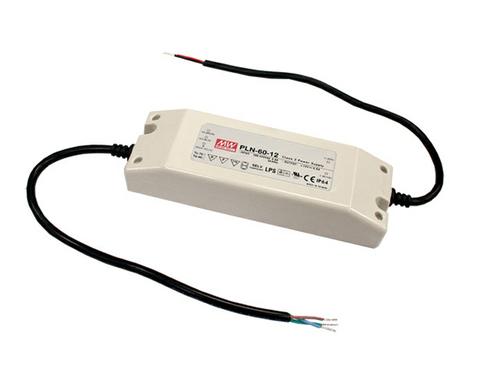

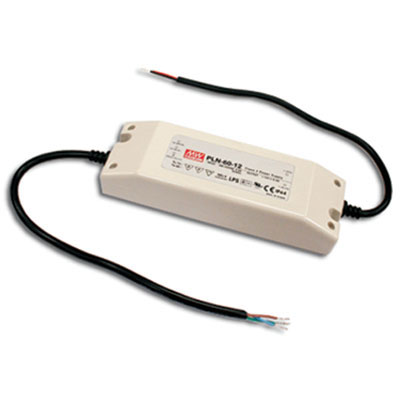

60 W 单组输出 27 V AC/DC LED 电源 带内置PFC功能
**Features:**
* Universal AC Input/Full Range Up to 295 VAC
* Fully Isolated Plastic Case with IP64 Level
* Built-In Constant Current Limiting Circuit with Adjustable OCP Level
* Built-In Active PFC Function
* Pass LPS
* IP64 Design for Indoor or Outdoor Installations
* Cooling by Free Air Convection
* 100% Full Load Burn-In Test
* High Reliability
* Suitable for LED Lighting and Moving Sign Applications
* Compliance to Worldwide Safety Regulations for Lighting
* 2-Year Factory Warranty
额定功率 62.1 W
输出接口数 1
输出电压 27 VDC
输出电流 2.3 A
通道数 1
输出功率 62.1 W
输入电压DC Max 417 V
输入电压DC Min 127 v
输入电压AC Max 295 v
输入电压AC Min 90 v
输出电压Max 30 V
输出电压Min 25 V
输出电流Max 2300 mA
输出电流Min 0 A
输入电流Min 0.8 A
输出功率Max 62.1 W
工作温度Max 50 ℃
工作温度Min -40 ℃
电源电压 90.264VAC, 127.417VDC
输入电压 90V ~ 265V
引脚数 5
封装 Plastic Enclosure
封装 Plastic Enclosure
重量 500 g
工作温度 -30℃ ~ 50℃
产品生命周期 Not Recommended for New Design
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409520
