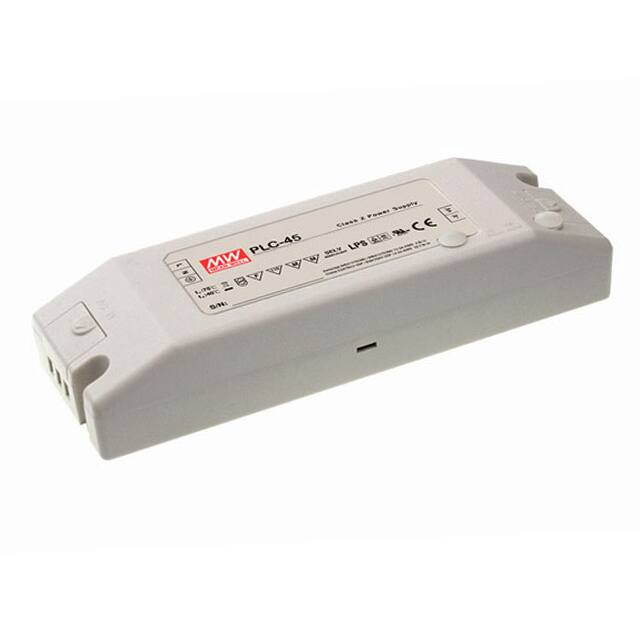

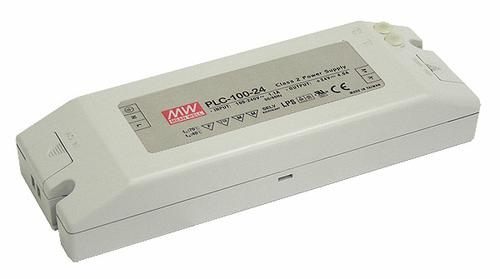

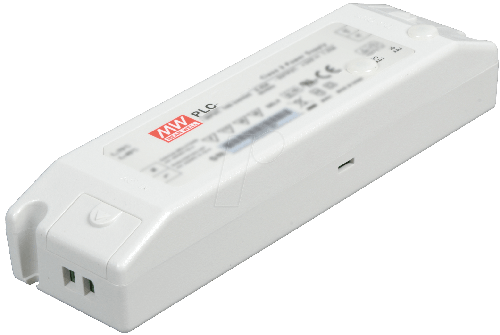

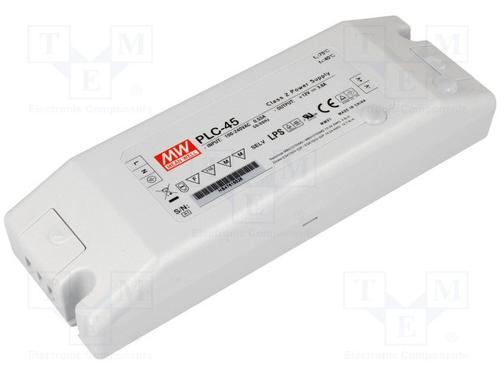

Power Supply; AC-DC; 24V@1.9A; 100-264V In; Enclosed; Panel Mnt; LED Driver; PLC Series
Universal AC input / Full range
Adjustable output voltage and current level
Short circuit, over current, over voltage, over temperature protections
Cooling by free air convection
Built-in constant current limiting circuit
Fully isolated plastic case with terminal block style of I/O
Built-in PFC fuction, comply with EN61000-3-2 class C greater than or equal to 75 percent load
Class 2 power unit
Pass LPS
100 percent full load burn-in test
High reliability
Sutable for LED lighting and moving sign applications
Compliance to world wide safety regulations for lighting
2 years warranty
额定功率 45.6 W
输出接口数 1
输出电压 24 VDC
输出电流 1.9 A
通道数 1
输出功率 45.6 W
输入电压DC Max 370 V
输入电压DC Min 127 v
输入电压AC Max 264 v
输入电压AC Min 90 v
输出电压Max 24 V
输出电压Min 18 V
输出电流Max 1900 mA
输出电流Min 0 A
输入电流Min 0.55 A
输出功率Max 45.6 W
工作温度Max 50 ℃
工作温度Min -30 ℃
电源电压 90.264VAC, 127.370VDC
输入电压 100VAC ~ 264VAC
安装方式 Panel
重量 410 g
工作温度 -30℃ ~ 50℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409510
