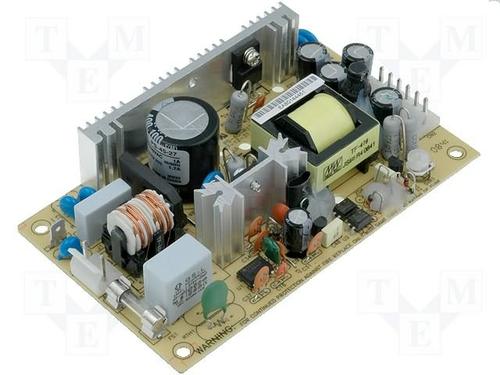

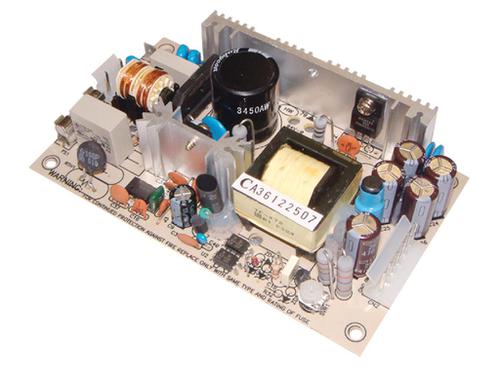

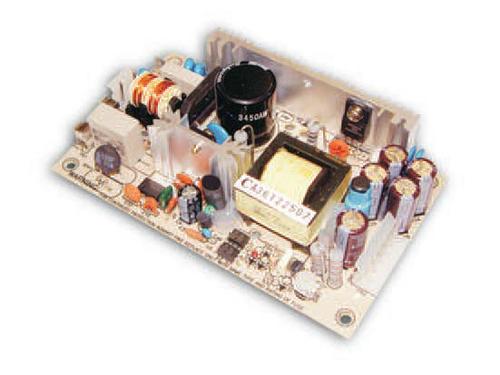

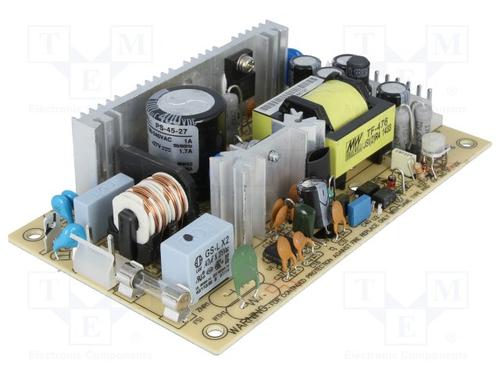

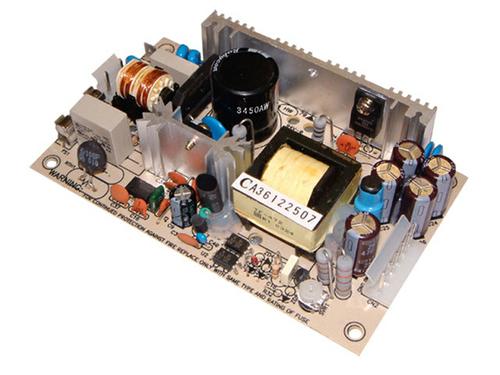

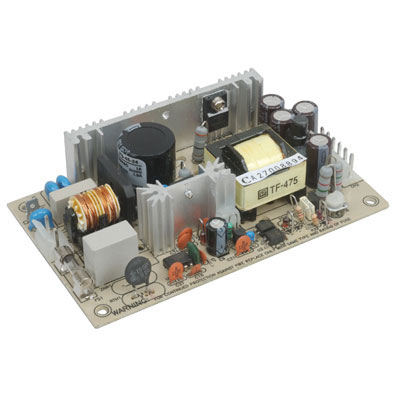

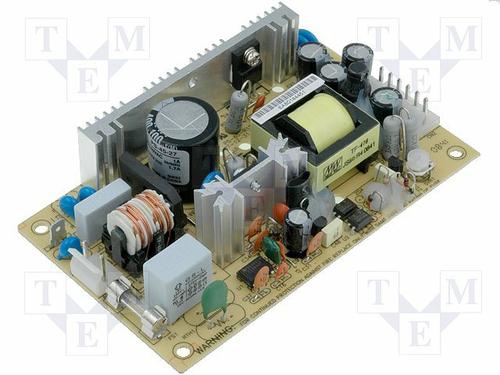

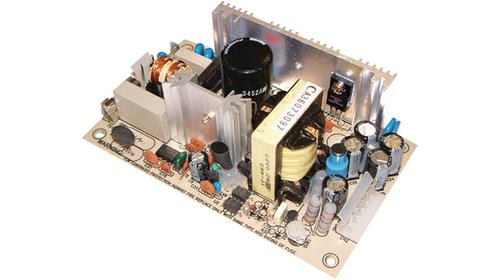

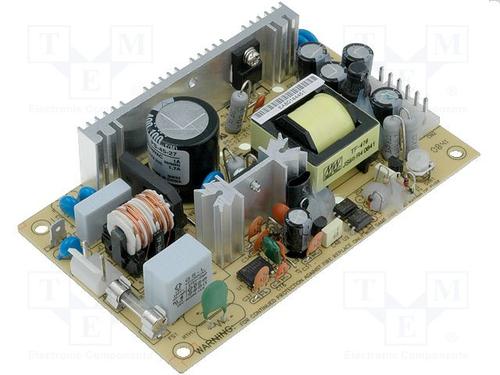

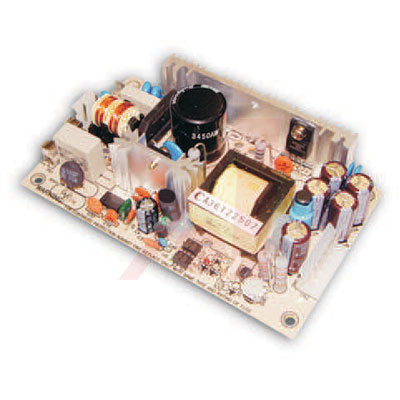

AC-DC Power Supply Single-OUT 27V 1.95A 45.9W 8Pin
**Features:
* **PCB Type, Non-PFC for Small Wattage Models
* Universal AC Input/Full Range
* Protections: Short Circuit, Overload, Over Voltage, Over Temperature
* Cooling by Free Air Convection
* 100% Full Load Burn-In Test
* Low Cost
* High Reliability
* 2-Year Factory Warranty
艾睿:
AC/DC Power Supply Single-OUT 27V 1.95A 45.9W 8-Pin
Allied Electronics:
Power Supply; AC-DC; 27V@1.7A; 90-264V In; Open Frame; Panel Mount; Embedded; PS Series
Jameco:
AC to DC Power Supply Open Frame Single Output 27 Volt 1.95 Amp 45.9 Watt
安富利:
AC/DC Power Supply Single-OUT 27V 1.95A 45.9W
Chip1Stop:
AC/DC Power Supply Single-OUT 27V 1.95A 45.9W 8-Pin
TME:
Pwr sup.unit: switched-mode; 45.9W; 127÷370VDC; 90÷264VAC; 27VDC
MASTER:
AC/DC Power Supply Single-OUT 27V 1.95A 45.9W 8-Pin
Electro Sonic:
AC/DC Power Supply - 1 Output - 27V@1.95A - 45.9W
CDI:
AC/DC 45W 27V Single Output Power Supply, Open Frame
额定功率 45.9 W
输出接口数 1
输出电压 27 V
输出电流 1.95 A
输出功率 45.9 W
输入电压DC Max 370 V
输入电压DC Min 127 V
输入电压AC Max 264 V
输入电压AC Min 90 V
额定电流Max 0.8 A
输出电流Max 1.95 A
输入电流Min 0.8 A
输出功率Max 45.9 W
工作温度Max 60 ℃
工作温度Min -10 ℃
电源电压 127.370VDC, 90.264VAC
输入电压 90V ~ 264V
引脚数 8
长度 5 in
宽度 3 in
高度 1.1 in
重量 190 g
工作温度 -10℃ ~ 60℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409510
