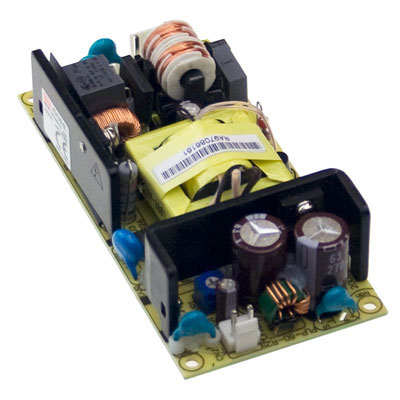

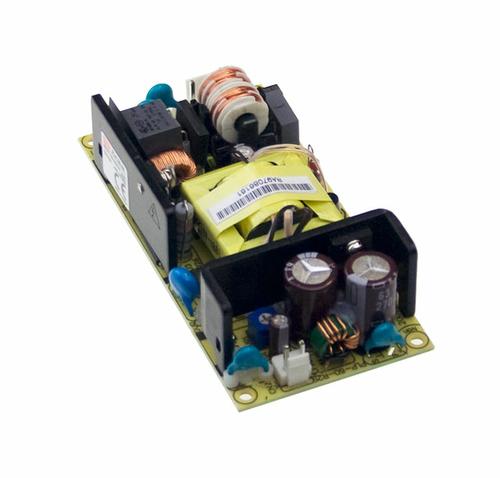

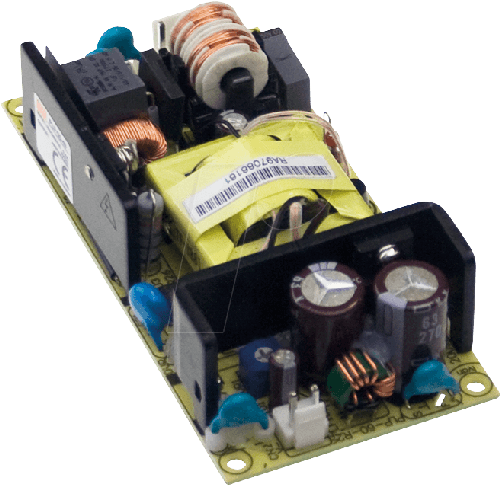

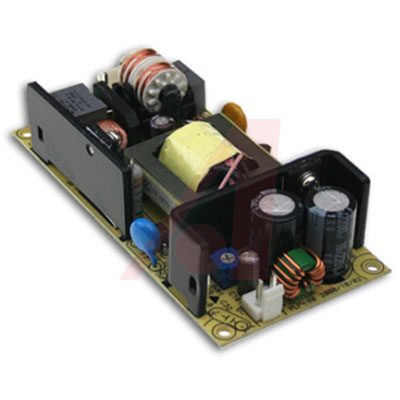

AC-DC Power Supply Single-OUT 12V 2.5A 30W 4Pin
Universal AC input / Full range
Short circuit, over current, over voltage protection
Built-in active PFC function
Cooling by free air convection
Class 2 power unit
Output current level adjustable
100 percent full load burn-in test
High reliability
Suitable for built-in applications of LED lighting
2 years warranty
得捷:
LED DRIVER CC AC/DC 9-12V 2.5A
艾睿:
AC/DC Power Supply Single-OUT 12V 2.5A 30W 4-Pin
Allied Electronics:
Power Supply; AC-DC; 12V@2.5A; 100-264V In; Open Frame; Pnl Mnt; LED Driver; PLP Series
Jameco:
AC to DC Power Supply Enclosed LED Single Output 12 Volts 2.5 Amps 30 Watts
安富利:
LED DRVR Module 1-CH 12V 2.5A Screw Mount
TME:
Pwr sup.unit: switched-mode; LED; 30W; 12VDC; 1.875÷2.5A; 120g
MASTER:
AC/DC LED Power Supply - Const Curr/Volt - 30W - Adj: 12 Vdc @ 2,500mA - Dim: No
Online Components:
AC/DC Power Supply Single-OUT 12V 2.5A 30W 4-Pin , Cannot use w/AC Wall Dimmer
Electro Sonic:
AC/DC LED Power Supply - Const Curr/Volt - 30W - Adj: 12 Vdc @ 2,500mA - Dim: No
CDI:
LED Driver CC, CV 30W 1.875-2.5A Linear 9-Vdc 90-264Vac PFC Non-Dimming Internal Pot Adj Io Open Frame
额定功率 30 W
输出接口数 1
输出电压 12 VDC
输出电流 2.5 A
通道数 1
输出功率 30 W
隔离电压 3.75 kV
输入电压Max 264 VAC
输入电压Min 90 VAC
输入电压DC Max 370 V
输入电压DC Min 127 v
输入电压AC Max 264 v
输入电压AC Min 90 v
输出电压Max 12 V
输出电压Min 9 V
输出电流Max 2500 mA
输出电流Min 0 A
输入电流Min 0.4 A
输出功率Max 30 W
工作温度Max 70 ℃
工作温度Min -30 ℃
电源电压 90.264VAC, 127.370VDC
输入电压 100VAC ~ 264VAC
引脚数 4
封装 Open Frame
封装 Open Frame
重量 120 g
工作温度 -30℃ ~ 70℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409510
