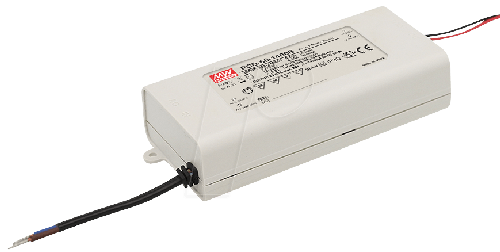

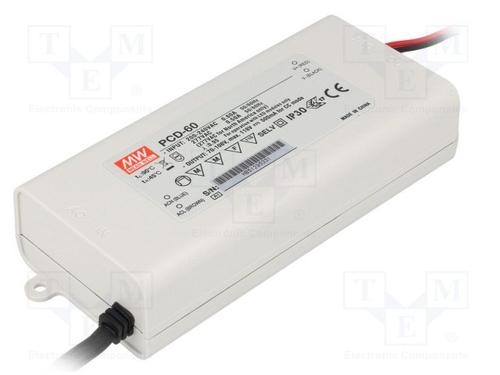

AC-DC Power Supply Single-OUT 20V to 34V 1.75A 59.5W 4Pin
**180-295VAC/DC Power Supply Single-OUT 20V to 34V 1.75A 59.5W 4-Pin, Useable w/some AC Wall Dimmers
贸泽:
LED Power Supplies 59.5W 20-34V 1750mA CC Dimmable LED PS
艾睿:
AC/DC Power Supply Single-OUT 20V to 34V 1.75A 59.5W 4-Pin
Allied Electronics:
Power Supply; Enclosed, 60W Class 2 PFC AC DimmingIn 180-295Vac +20-34V1750mA
Jameco:
AC to DC Power Supply Enclosed LED Single Output 20-34 Volts 1.75 Amps 59.5 Watts
安富利:
LED DRVR Module 1-CH Triac IP42 34V 1.75A
TME:
Pwr sup.unit: switched-mode; LED; 59.5W; 20÷34VDC; 1750mA; IP30
MASTER:
AC/DC LED Powr Sply - Const Curr - 59.5W - Fixed: 34 Vdc @ 1,750mA - Dim: AC Line Phase Cut
Online Components:
**180-295VAC/DC Power Supply Single-OUT 20V to 34V 1.75A 59.5W 4-Pin, Useable w/some AC Wall Dimmers
Electro Sonic:
AC/DC LED Powr Sply - Const Curr - 59.5W - Fixed: 34 Vdc @ 1,750mA - Dim: AC Line Phase ...
CDI:
LED Driver CC 60W 1750mA Linear 20-34Vdc 180-295Vac PFC Phase-Cut Dimming IP30 Plastic Enclosure
额定功率 59.5 W
输出接口数 1
输出电压 20.34 VDC
输出电流 1.75 A
通道数 1
输出功率 59.5 W
输入电压AC Max 295 v
输入电压AC Min 180 v
输出电压Max 34 V
输出电压Min 20 V
输入电流Min 0.6 A
输出功率Max 60 W
电源电压 180.295 VAC
输入电压 180VAC ~ 295VAC
引脚数 4
封装 Plastic Enclosure
长度 128 mm
宽度 60 mm
高度 31.5 mm
封装 Plastic Enclosure
重量 350 g
工作温度 -30℃ ~ 45℃
包装方式 Bulk
RoHS标准 RoHS Compliant
