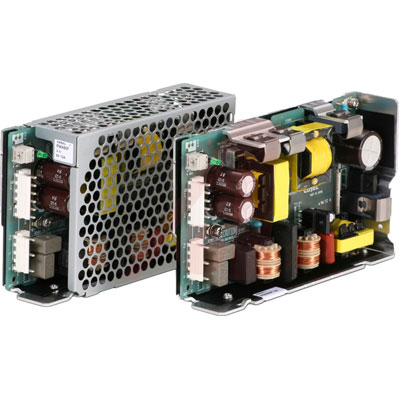

PMA30F-12

开关电源 30W 12V 2.5A AC-DC Power Supply

Single output power supply suitable for medical equipment.

Unit type power supplie with hormonic attenuator , high efficiency variations.

Medical Grade Approval - Complies with UL 60601-1 - C-UL, EN60601-1, TÜV, CE

Hi Reliabllity - Failure Rate 0.01%

Universial Input 85-264 VAC 50Hz/60Hz

Power Factor Correction 60 W and 100 W

Low Leakage Current — 0.09 mA/0.18 mA 100 VAC/240 VAC 60/100 W

Fully Regulated

Isolation Input/Output 4,000 VAC.

100% Convection Cooling — Operating Temp -10-70°C

Low EMI Noise — Complies with FCC-B, VCCI-B, CISPR22-B, EN55011-B, EN55022-B

Hi Efficiency and 5-Year Warranty

Overvoltage, Overcurrent Protection

Vertical Terminal Block and Horizontal Terminal Block Options

Cover N Option
