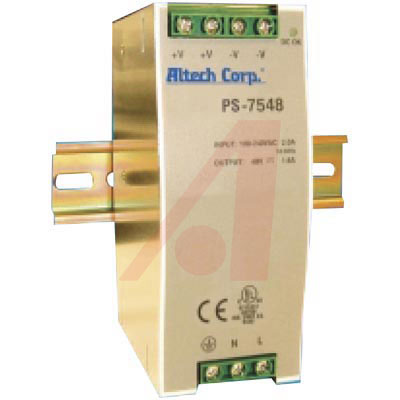

PS-7548

Power Supply; 48V; 1.6A; 47 to 63Hz; Cold Start 30A/230VAC Max.; 55.5mm

DIN Rail mountable power supplies have a Universal AC input range of 85-264 V on the single-phase and 350-550 V on the three-phases. They are suitable for industrial and automation applications. This line has a built-in short circuit, overload, over-voltage and over-temperature protection. They are available from 45 W-960 W with standard voltage outputs of 5 V, 12 V, 15 V, 24 V on the lower wattage models, and 24 V and 48 V on the higher wattage units. These high efficiency up to 91% power supplies are cooled by free air convection, have an LED indicator for power on and have a 100% full load burn-in test. They are UL/cUL and CE approved and have a 3-year warranty.

* UL508 Listed

* Installed on DIN Rail TS35/7.5 or 15

* Protections: Short Circuit/Overload/Overvoltage/Over Temperature

* Cooling by Free Air Convection

* Worldwide Approvals

* Universal AC Input

* Three-Year Warranty
