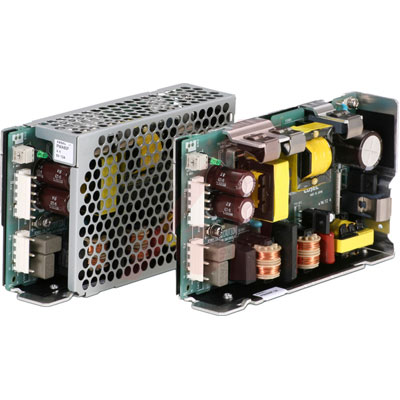

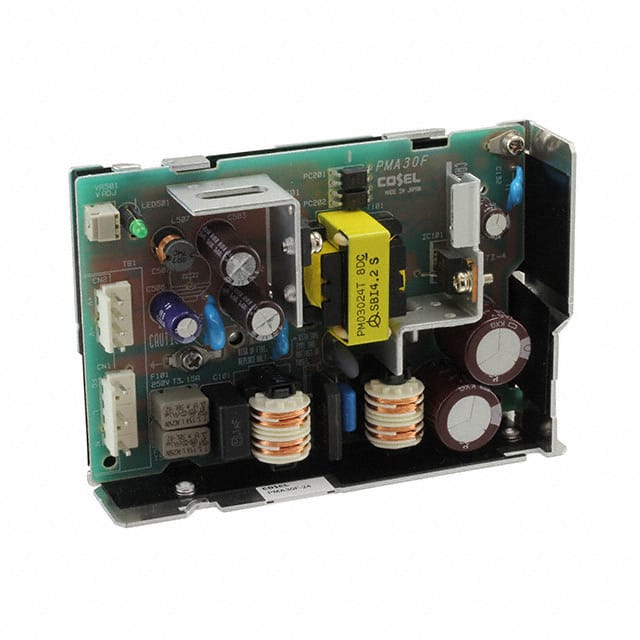

Switching Power Supplies 30W 24V 1.3A AC-DC Power Supply
Single output power supply suitable for medical equipment.
Unit type power supplie with hormonic attenuator , high efficiency variations.
Medical Grade Approval - Complies with UL 60601-1 - C-UL, EN60601-1, TÜV, CE
Hi Reliabllity - Failure Rate 0.01%
Universial Input 85-264 VAC 50Hz/60Hz
Power Factor Correction 60 W and 100 W
Low Leakage Current — 0.09 mA/0.18 mA 100 VAC/240 VAC 60/100 W
Fully Regulated
Isolation Input/Output 4,000 VAC.
100% Convection Cooling — Operating Temp -10-70°C
Low EMI Noise — Complies with FCC-B, VCCI-B, CISPR22-B, EN55011-B, EN55022-B
Hi Efficiency and 5-Year Warranty
Overvoltage, Overcurrent Protection
Vertical Terminal Block and Horizontal Terminal Block Options
Cover N Option
