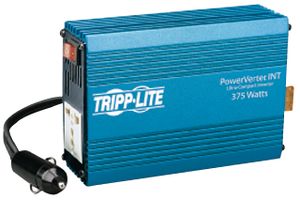

PVINT375图片8

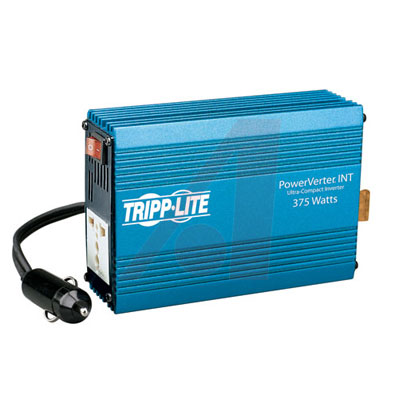

PVINT375图片9

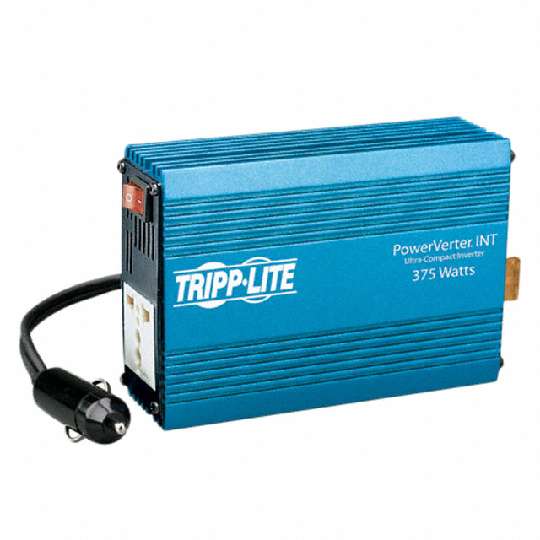

PVINT375图片10
PVINT375概述

TRIPP-LITE PVINT375 DC/AC Inverter, Automotive, 1 Output, 12VDC, 375W, 230VAC, 196.9mm, 108mm

* Converts 12 volt DC to modified sine wave AC power compatible with 220-240 volt/50Hz equipment

* 1 meter input DC cable connects to any 12 volt automotive cigarette lighter jack

* 375 watt continuous/600 watt instantaneous peak surge power handling capability supports

* variety of electronic loads

* Universal outlet accepts French, German and UK style AC input connectors, plus

* variety of other international plug sets

* Rugged all-metal case

* Ultra compact, high-frequency inverter design weighs approximately

* kg

* Low input voltage alarm alerts users to low vehicle battery conditions starting at 10.5V

* Automatic low voltage shutoff prevents deep battery discharge starting at 10V

* Lighted power switch offers visual notification of power status

* Overload protection via user-replaceable automotive fusing

* Built-in cooling fan prevents overheating, during extended usage periods

* Attractive full color retail packaging

PVINT375中文资料参数规格
技术参数

输出接口数 1

输入电压DC 12.0 V

输出电压 230 VAC

输出功率 375 W

输入电压Max 12 VDC

输入电压 12 VDC

外形尺寸

长度 196.9 mm

宽度 108 mm

高度 50.8 mm

物理参数

重量 910 g

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买PVINT375
型号: PVINT375
制造商: Tripp-Lite
描述:TRIPP-LITE PVINT375 DC/AC Inverter, Automotive, 1 Output, 12VDC, 375W, 230VAC, 196.9mm, 108mm
