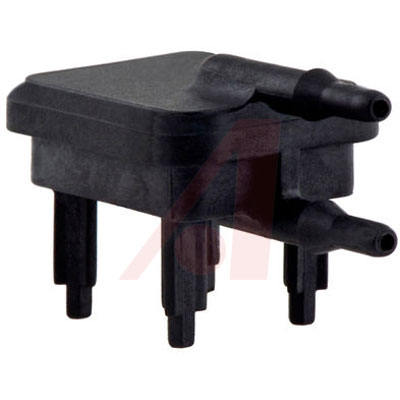

Sensor; Pressure; Differantial; 1inch of H2O; 2Ft Bracket w/Lead Wires
The product is ideal for Variable Air Volume VAV HVAC Systems, duct static pressure measurements and modulated furnace controls and is compatible with dry air and gases. The innovative design eliminates mounting position effects found on other low-pressure differential sensors currently available in the market.
**Features:**
* Rugged Package
* PCB Mount and Cable Attached Configurations
* Amplified, Temperature Compensated, Linear Output
* No Position Sensitivity
* EMI/RFI and ESD Protected
* Superior Output Signal Stability
* RoHS Compliant
**Specifications:
**
* Differential Pressure Ranges: 2, 5, 10, ±1, ±2 and ±5 Inches of H20
* Supply Voltage: 5.0 ±0.5 VDC
* Output Voltage: 0.25 to 4.0 VDC
* Media — Air and Dry, Inert Gasses
