PTFA220041M V4

Trans MOSFET N-CH 65V 10Pin SON T/R

Summary of Features:

.

Typical two-carrier WCDMA performance at 1842 MHz, 8 dB PAR, POUT = 27 dBm Avg, ACPR = –44 dBc

.

Typical CW performance, 1842 MHz, 28 V

\- P OUT = 37 dBm

\- Efficiency = 53.5%

\- Gain = 17.9 dB

.

Typical CW performance, 940 MHz, 28 V

\- P OUT = 37.5 dBm

\- Efficiency = 57%

\- Gain = 19.7 dB

.

Capable of handling 10:1 VSWR @ 28 V, 5 W CW output power

.

Integrated ESD protection

.

Excellent thermal stability

.

Pb-free and RoHS compliant

.

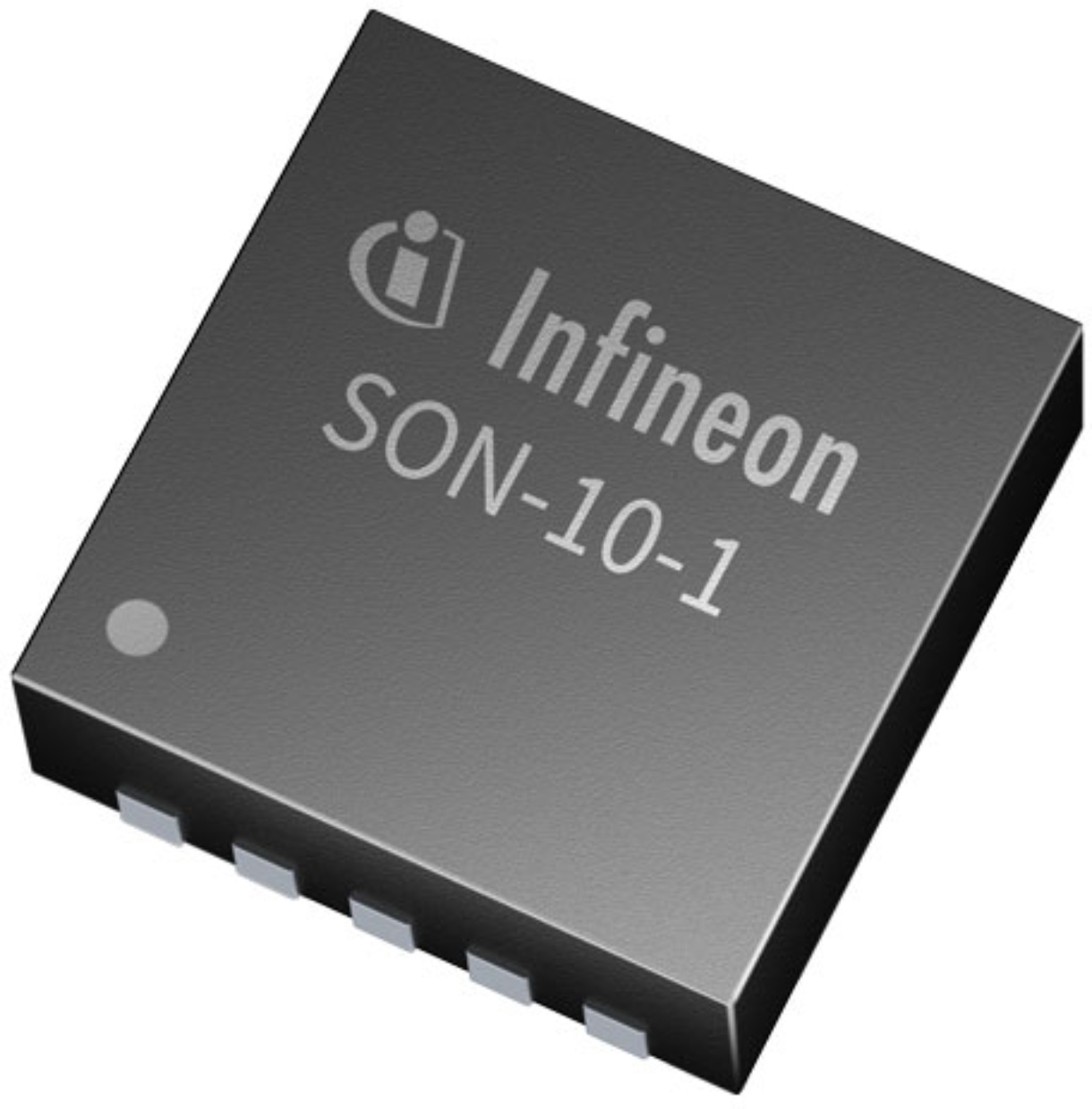

Package: PG-SON-10
