PS2501A-1

NECs HIGH ISOLATION VOLTAGE SINGLE TRANSISTOR TYPE PHOTOCOUPLER SERIES

DESCRIPTION

"s is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor.

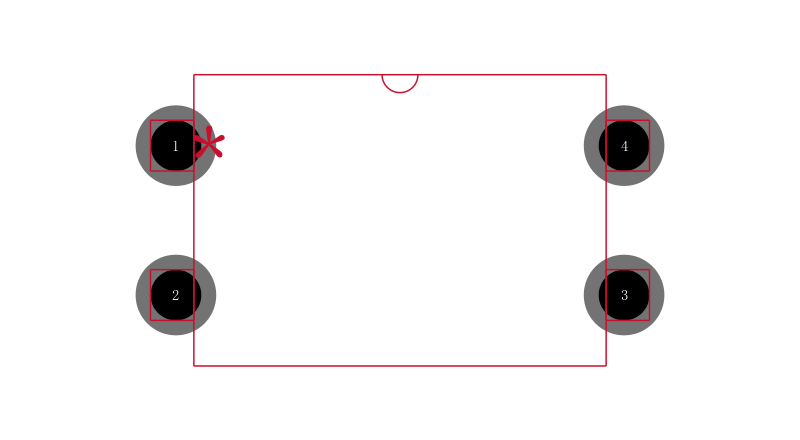

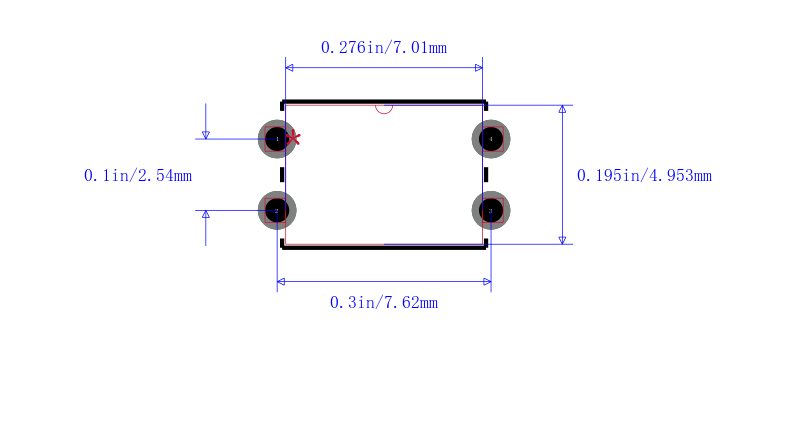

NEC"s PS2501A-1 is in a plastic DIP Dual In-line Package and the PS2501AL-1 are lead bent type Gull-wing for surface mount.

FEATURES

• HIGH ISOLATION VOLTAGE

   BV: 5000 Vr.m.s

• UL AWAITING APPROVAL

• ORDERING NUMBER OF TAPING PRODUCT

   PS2501AL-1-E3, E4, F3, F4

APPLICATIONS

• POWER SUPPLY

• TELEPHONE / FAX

• FACTORY AUTOMATION

• PROGRAMMABLE LOGIC CONTROLLER
